Eaton TVS Supercharger: How It Works & Why VT Uses It

Quick Summary: The Eaton TVS (Twin Vortices Series) is the supercharger platform behind every VT forced induction kit for Toyota 3.5L and 4.0L engines. Built around a four-lobe rotor design with a 160-degree helix twist, the TVS1320 delivers linear, lag-free boost from just above idle through redline. VT sources genuine Eaton TVS units directly through an authorised supply chain, and every kit includes a 3-year Eaton warranty on the supercharger core. This page explains how the technology works, why positive displacement matters for off-road and towing applications, and how to verify you are getting a genuine Eaton unit.

What Is the Eaton TVS Supercharger?

TVS stands for Twin Vortices Series — Eaton's current-generation positive-displacement supercharger platform. Eaton has manufactured superchargers for OEM automotive applications for decades, supplying units to major manufacturers including General Motors, Ford, and Toyota for factory-supercharged vehicles. The TVS line represents the latest evolution of that engineering.

The TVS is a roots-type supercharger. It sits on top of the intake manifold and is mechanically driven by the engine's crankshaft via a belt. When the engine turns, the supercharger turns. Air is compressed and delivered to the cylinders in direct proportion to engine speed and throttle position. There is no lag, no boost threshold, and no waiting for exhaust gases to spool a turbine.

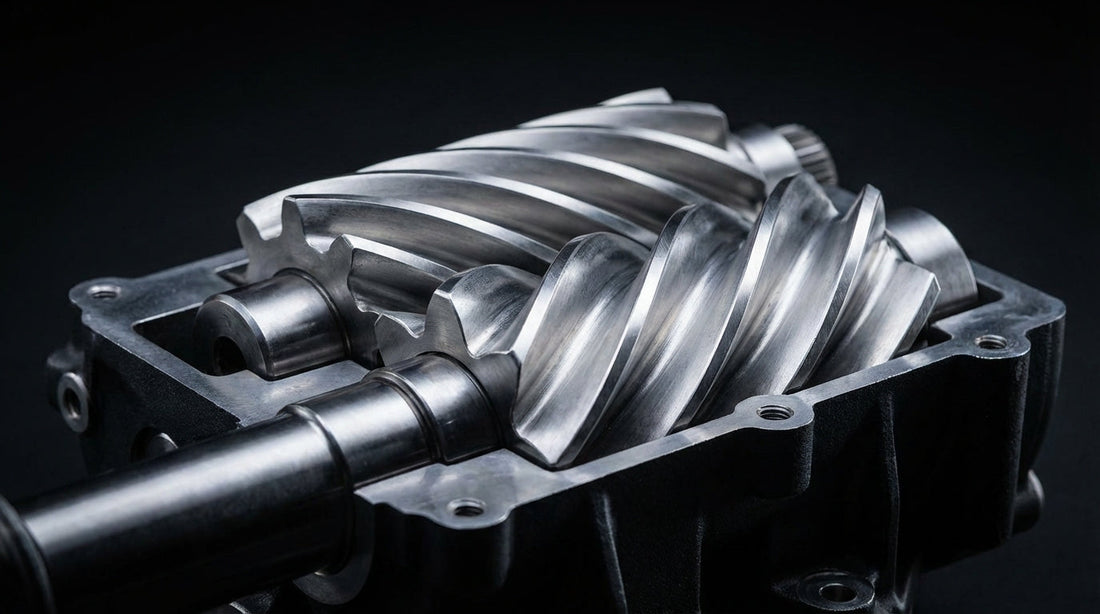

What separates the TVS from earlier roots-type blowers — and from the many imitation units on the market — is the rotor design. The TVS uses four lobes per rotor instead of three, and those lobes are twisted through 160 degrees along their length. This twist is the core of the technology's advantage, and it is worth understanding why.

How the TVS Four-Lobe Design Works

A supercharger compresses air by trapping a volume of ambient air between its rotors and the housing, then carrying that air from the inlet side to the outlet side where it is discharged into the intake manifold at higher pressure. The efficiency of this process depends on how smoothly the air is transferred, how completely the volume is sealed during transfer, and how little the compressed air leaks back past the rotors.

The 160-Degree Helix Twist

Older roots-type superchargers used straight-cut rotors — the lobes ran parallel to the rotor shaft with no twist. Air was trapped in discrete pockets and dumped into the manifold in pulses. Each pulse created a pressure spike followed by a momentary drop, producing the characteristic whine and vibration associated with traditional blowers. More importantly, the pulsing delivery reduced thermal efficiency and increased parasitic drag on the engine.

The TVS rotors twist 160 degrees from one end to the other. This means the air transfer from inlet to outlet is progressive rather than instantaneous. As one pair of lobes begins to open to the outlet, the trailing edge of the previous pocket is still sealing. The result is overlapping delivery — a continuous, smooth flow of compressed air rather than a series of pulses.

This helix twist produces three measurable benefits:

1. Higher volumetric efficiency — less air leaks back past the rotors during the transfer, so more of the work done by the supercharger translates into actual boost pressure
2. Reduced noise and vibration — the overlapping delivery eliminates the harsh pulsing of straight-cut designs, producing a refined intake note rather than a mechanical whine
3. Lower inlet air temperatures — smoother compression generates less heat, which means the air reaching the intake manifold is cooler before it even passes through the intercooler

Four Lobes vs. Three

The move from three-lobe to four-lobe rotors further improves the smoothness of air delivery. With four lobes, there are more transfer events per revolution, each moving a smaller volume of air. The combined effect of four lobes and a 160-degree twist is a supercharger that delivers boost with near-continuous flow characteristics — far closer to a screw-type compressor than a traditional roots blower, while retaining the packaging and durability advantages of the roots platform.

Why Positive Displacement Matters

Superchargers fall into two broad categories: positive-displacement (roots-type and screw-type) and centrifugal. Both compress air, but they deliver boost in fundamentally different ways.

A centrifugal supercharger operates like a turbocharger's compressor side — boost output increases with RPM. At low engine speeds, a centrifugal unit produces minimal boost. Peak boost arrives near peak RPM. This characteristic suits high-RPM performance applications, but it is a poor match for vehicles that spend most of their working life at low to moderate engine speeds.

A positive-displacement supercharger delivers boost in proportion to throttle opening, across the entire rev range. At 1,500 RPM in low-range four-wheel drive, crawling over a rock ledge, the TVS is delivering meaningful boost. At 2,500 RPM pulling a caravan up a highway grade, the TVS is delivering meaningful boost. At 4,500 RPM during a highway overtake, the TVS is delivering meaningful boost. The power curve is linear and predictable.

Why This Matters for Off-Road and Towing

For vehicles that tow heavy loads and traverse off-road terrain, predictable low-end torque delivery is more valuable than peak horsepower. A turbocharger or centrifugal supercharger that delivers its best performance above 4,000 RPM does not help when:

• You are climbing a sand dune at 2,000 RPM in second gear with a loaded vehicle
• You are maintaining 100 km/h on a highway grade in top gear at 2,200 RPM with a caravan behind
• You are picking a line through a rocky creek crossing at idle speed in low range
• You need instant throttle response to merge onto a freeway from a standstill with 3,000kg of vehicle and trailer

The Eaton TVS delivers boost where these vehicles need it most — from just above idle. There is no turbo lag, no waiting for a power band, and no sudden torque spike that breaks traction on loose surfaces. The driver gets exactly the amount of boost they request through the throttle pedal, at any engine speed.

The VT–Eaton Partnership

VT's relationship with Eaton is a direct, verified supply partnership. Every TVS1320 unit used in a VT supercharger kit is a genuine Eaton product sourced through the authorised Eaton supply chain. This is not a secondary market arrangement — VT imports genuine units with full Eaton traceability from factory to final kit.

This partnership exists because VT's engineering team selected the TVS1320 as the best-suited supercharger for their Toyota 3.5L and 4.0L applications after evaluating multiple platforms. The TVS1320's displacement, rotor profile, and mounting dimensions matched VT's requirements for a compact, high-efficiency unit that could be integrated into constrained engine bays without cutting, welding, or relocating factory components.

The partnership also means VT has access to Eaton's technical data, application engineering support, and warranty infrastructure. When a VT customer receives a kit, the Eaton supercharger inside it carries the same warranty backing as units supplied to OEM vehicle manufacturers.

The Counterfeit Problem: Why Genuine Matters

The Eaton TVS platform is widely recognised as the benchmark for positive-displacement superchargers. That recognition has created a market for counterfeit units — copies that replicate the external appearance of an Eaton TVS but use inferior materials, loose tolerances, and unverified rotor profiles.

Counterfeit superchargers present real risks:

• Reduced efficiency — poor rotor tolerances increase internal leakage, reducing actual boost output below rated specifications
• Inconsistent air delivery — incorrect helix angles produce uneven boost pulses, leading to detonation risk under load
• Shorter service life — inferior bearing materials and housing alloys fail prematurely under sustained high-temperature operation
• No warranty coverage — counterfeit units carry no manufacturer backing, and failure damage is the owner's liability
• Safety concerns — a rotor or bearing failure at highway speed under full boost can cause catastrophic engine damage

These are not theoretical risks. Counterfeit supercharger units have been documented across the aftermarket, particularly in markets where Eaton does not have direct retail distribution.

How to Verify a Genuine Eaton TVS Unit

Every genuine Eaton TVS supercharger carries identifiable authentication features:

1. Eaton casting marks — the Eaton name and TVS designation are cast directly into the housing, not stamped or engraved after manufacture. Genuine casting marks are integral to the housing surface and cannot be easily replicated
2. Serial number — each unit carries a unique serial number traceable through Eaton's production records. VT can verify any serial number against the Eaton supply chain database
3. Rotor finish quality — genuine Eaton rotors have a specific surface coating and machining finish that is visibly different from counterfeit copies under inspection
4. Housing material quality — genuine units use Eaton's proprietary aluminium alloy formulation, which has distinct colour and texture characteristics compared to generic aftermarket castings
5. Packaging and documentation — genuine units ship with Eaton documentation, including warranty registration information

If you are evaluating a supercharger kit from any supplier, ask for the Eaton serial number and verify it. If the supplier cannot provide a serial number or cannot confirm the unit is a genuine Eaton product, that is a significant red flag.

3-Year Eaton Warranty

Every VT supercharger kit includes a 3-year Eaton warranty on the TVS1320 supercharger unit. This warranty covers manufacturing defects in materials and workmanship and is backed directly by Eaton's warranty infrastructure.

The warranty applies to the supercharger core — the rotor assembly, housing, bearings, and internal seals. It is valid from the date of purchase and does not require separate registration beyond the standard purchase documentation provided with the kit.

This warranty coverage is a direct result of VT's use of genuine Eaton units through the authorised supply chain. Counterfeit or grey-market units do not carry this warranty. Kits built around non-genuine supercharger units cannot offer equivalent coverage because the manufacturer will not stand behind a product they did not make.

VT Applications Using the Eaton TVS1320

The TVS1320 is the common supercharger platform across VT's Toyota and Nissan 4.0L supercharger kits. Each kit is application-specific — with unique mounting brackets, intercooler routing, belt drives, and ancillary systems engineered for each vehicle — but the supercharger core is the same proven Eaton unit.

All kits share these common features:

• Genuine Eaton TVS1320 supercharger unit
• Water-cooled intercooler system — dedicated circuit for intake charge cooling
• Dedicated oil cooling — independent supercharger lubrication system
• Bolt-on installation — no cutting, welding, or permanent modification required
• 3-year Eaton warranty on the supercharger core

Important: ECU tuning is not included in the supercharger kit. Engine management calibration must be handled separately to match your specific fuel type, altitude, and modification package. This ensures a properly tailored tune rather than a generic calibration that cannot account for individual vehicle configurations.

Browse the full range: Browse All Supercharger Kits

Key Benefits of the Eaton TVS Platform

• Linear, lag-free boost — positive-displacement design delivers proportional boost from idle to redline with zero turbo lag
• Proven OEM heritage — Eaton supplies superchargers to major vehicle manufacturers for factory-supercharged applications worldwide
• Four-lobe, 160-degree helix — the most advanced roots-type rotor design available, delivering near-continuous airflow with minimal pulsing
• Compact packaging — the TVS1320 fits within existing engine bay constraints without requiring firewall or structural modifications
• Low parasitic loss — the helical rotor design reduces the energy required to drive the supercharger compared to straight-cut alternatives
• Mechanical simplicity — belt-driven operation with no exhaust plumbing, wastegates, blow-off valves, or electronic boost controllers required
• High-altitude compensation — the supercharger forces more air into the engine regardless of ambient air density, maintaining power output at elevation where naturally aspirated engines lose significant performance
• Quiet operation — the 160-degree twist produces a refined intake tone rather than the aggressive whine associated with older blower designs

Frequently Asked Questions

What does TVS stand for, and how is it different from a regular roots blower?

TVS stands for Twin Vortices Series. It is Eaton's current-generation positive-displacement supercharger platform. The key differences from traditional roots-type blowers are the four-lobe rotor configuration (versus three lobes in older designs) and the 160-degree helix twist along the length of each rotor. These design changes produce smoother air delivery, higher volumetric efficiency, lower discharge temperatures, and significantly reduced noise compared to straight-lobe roots superchargers. The TVS is still mechanically a roots-type unit — it traps air between the rotors and housing and transfers it from the inlet to the outlet — but the performance characteristics are substantially improved over earlier generations.

How can I tell if a supercharger is a genuine Eaton unit or a counterfeit?

Genuine Eaton TVS units carry several authentication features. Look for Eaton casting marks that are integral to the housing — cast into the metal during manufacture, not stamped or engraved afterwards. Every genuine unit has a unique serial number that can be verified through Eaton's production records. The rotor surface coating, housing alloy quality, and machining finish are all visibly different from counterfeit copies under close inspection. If you are purchasing a supercharger kit, ask the supplier for the Eaton serial number. VT can verify any serial number in their kits against the Eaton supply chain database. A supplier who cannot provide or verify a serial number is a red flag.

Does the VT supercharger kit include ECU tuning?

No. ECU tuning is not included in any VT supercharger kit. Engine management calibration must be handled separately by a qualified tuner who can match the calibration to your specific fuel type, altitude, existing modifications, and operating conditions. This is intentional — a tailored tune produces better results than a one-size-fits-all calibration, and it ensures the engine management accounts for variables that differ between individual vehicles and locations. AME Motorsport can advise on tuning requirements for your specific application.

Why does VT use a positive-displacement supercharger instead of a turbocharger?

Turbochargers are powered by exhaust gas, which means they have an inherent lag — boost is not available until the exhaust flow is sufficient to spin the turbine. For high-RPM performance applications, turbochargers can be very effective. But for vehicles that tow heavy loads, traverse off-road terrain at low speeds, and need instant throttle response in a wide variety of conditions, a positive-displacement supercharger is the better match. The Eaton TVS delivers boost from just above idle, in direct proportion to throttle input. There is no lag, no power band to wait for, and no sudden torque spike that can break traction on loose surfaces. The linear, predictable power delivery of the TVS is what makes it suited to the demanding conditions that LandCruiser, Prado, FJ Cruiser, and Patrol owners encounter daily.

What warranty coverage comes with the Eaton TVS in a VT kit?

Every VT supercharger kit includes a 3-year Eaton warranty on the TVS1320 supercharger core. This covers manufacturing defects in materials and workmanship for the rotor assembly, housing, bearings, and internal seals. The warranty is backed by Eaton's own warranty infrastructure and is a direct result of VT sourcing genuine Eaton units through the authorised supply chain. This level of warranty coverage is only available on genuine Eaton products — counterfeit or grey-market units do not carry equivalent manufacturer backing.
