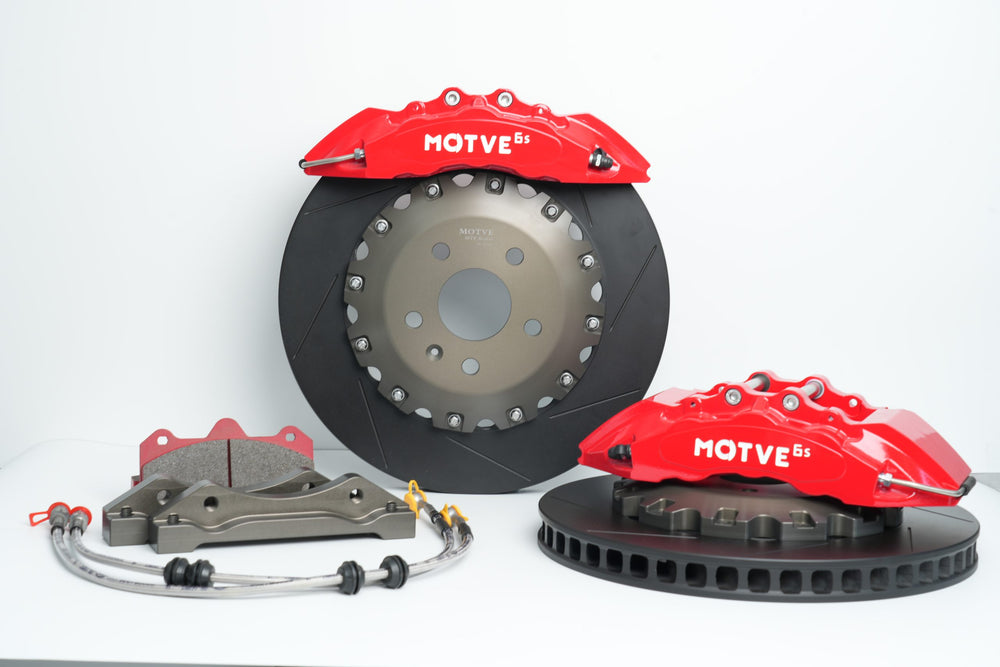

Motve MT6S high-performance 6-pistons caliper system (Front Wheel)

The Motve MT6S is a high-performance 6-piston caliper system designed for front wheels, showcasing a blend of precision engineering and quality materials to deliver exceptional braking performance. Below is an in-depth analysis of its technical specifications:

Technical Specifications:

• Piston Diameter: φ27mm, φ31.8mm, φ36mm
  • The varied piston diameters are crucial for ensuring even pressure distribution across the brake pads, resulting in consistent braking performance.
• Piston Area: 48cm²
  • A substantial piston area, indicative of a robust clamping force.
• Brake Disc Diameter: φ355mm, φ362mm, φ380mm
  • Compatibility with various disc diameters allows versatility and adaptability to different vehicle setups.
• Brake Disc Thickness (Max/Min): 32mm/30mm, 34mm for φ380
  • Adequate thickness for efficient heat dissipation, reducing the risk of brake fade during intensive use.
• Caliper Weight: 3.5kg
  • A balanced weight that optimizes durability and performance efficiency.
• Thread Specification of Fuel Inlet: M10*1
• Mounting Hole Center Distance: 180 mm
• Mounting Hole Offset: 42 mm
• Mounting Hole Diameter: φ12.1mm
• Distance from Mounting Surface to Brake Disc Top: 63.5mm

Brake Pad Specifications:

• Brake Pad Model: MT6D55
• Brake Pad Thickness: 16.5mm
• Friction Surface Width: 54mm
• Friction Block Area: 68.4cm²
• Brake Pad Material: Low-Metallic (M-Series)
  • This material is renowned for providing a balanced performance, offering durability, and reducing rotor wear.

Brake Disc Specifications:

• Brake Disc Model: MTP35532D55.5
• Brake Disc Diameter: φ355mm
• Brake Disc Thickness: 32mm
• Friction Surface Width: 55.5mm
• Brake Disc Ventilation: 48 Ventilation Holes in Forward Arch Ribs
• Ventilation Core Process: Film-covered Sand
• Mounting Hole PCD: 12*215.9
• Mounting Hole Diameter: 6.4mm
• Positioning Ring Diameter: φ195mm
• Petal Step: 0.2mm
• Brake Disc Marking Method: Arc, Line, Herringbone, Drilling, etc.
• Brake Disc Surface Treatment: Phosphating and Metachromatic Coating
• Brake Disc Material: G3500 High Carbon
• Heat Treatment: 580℃ Heat Treatment

Caliper Technical Inspection Specifications:

• Caliper Housing Forging Strength: Tensile Strength ob≥320MPa
• Housing Hardness: Hardness HV≥400
• Low-pressure Seal Test: Passed
• High-pressure Seal Test: Passed
• Appearance: The caliper features a painted appearance with no collision damage and a consistent gloss.
• Ultra-high Pressure Test: Passed
• Inspection Standard: The brake caliper assembly meets all the requirements of QC/T592.

The Motve MT6S high-performance braking system is designed to handle high-stress situations, providing reliable and consistent braking power for performance-oriented vehicles. With its blend of quality materials, precise engineering, and stringent quality control, it stands out as a top choice for automotive enthusiasts seeking enhanced braking capabilities.
