Brakes

Quick Summary

Unlike iron rotors that can be turned on a lathe to restore a smooth friction surface, carbon ceramic rotors cannot be resurfaced. The reason is structural: carbon ceramic rotors feature an engineered SiC surface coating that is fundamentally different from the C/SiC composite substrate beneath it. Machining removes this coating permanently, exposing material that was never designed as a friction surface. AME Motorsport's CCB rotors, with their SiC coating exceeding 0.8mm and long fibre construction, are engineered to make resurfacing unnecessary by delivering 150,000 to 300,000-plus kilometres of service life. This article from AME Motorsport explains the engineering behind why resurfacing is not viable, how to assess rotor condition, and the Technology for Everyone approach to replacement planning.

Why Iron Rotors Can Be Resurfaced

Understanding why resurfacing works for iron is essential context. Cast iron brake rotors are homogeneous. The friction surface is the same grey iron as the material 2, 5, or 10 millimetres below it. When heat, scoring, or uneven pad deposits create surface irregularities, a technician mounts the rotor on a brake lathe, removes a thin layer from both friction surfaces, and exposes fresh iron that functions identically to the original surface.

This works because iron is a uniform material. There is no engineered surface layer distinct from the bulk material. The entire cross-section is the same iron, so exposing a fresh layer restores the rotor to near-original condition. As long as the rotor remains above its minimum thickness specification, this process can be repeated.

Why Carbon Ceramic Rotors Cannot Be Resurfaced

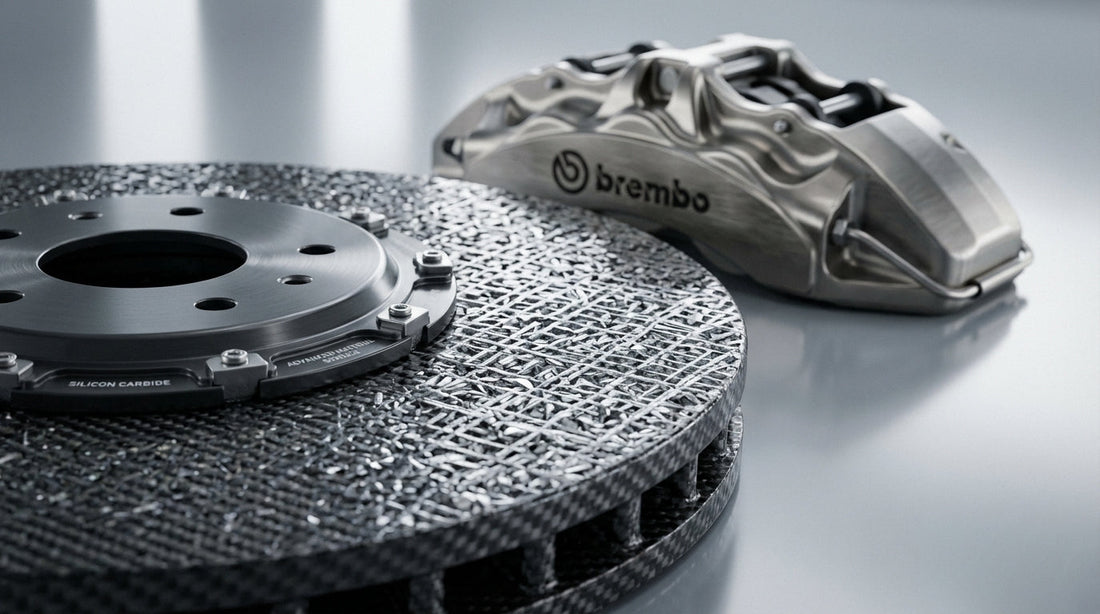

Carbon ceramic rotors are composite materials with a distinct engineered surface layer. The structure consists of two zones with different properties and different purposes.

The Two-Zone Structure

The SiC surface coating is a hard, dense silicon carbide layer applied to the friction surfaces during manufacturing. On AME Motorsport's CCB rotors, this coating exceeds 0.8mm in thickness and provides five times the wear resistance of the uncoated composite beneath it. It is specifically engineered as the friction interface, with hardness, surface finish, and friction characteristics designed for interaction with brake pads.

The C/SiC composite substrate forms the bulk of the rotor body. Made from carbon fibre reinforcement infiltrated with silicon carbide matrix via Chemical Vapour Infiltration, it provides structural strength, thermal management, and dimensional stability. It is designed as a structural element, not as a friction surface.

What Machining Actually Does

Mounting a carbon ceramic rotor on a lathe and cutting the friction surface would first remove the engineered SiC coating. This coating cannot be restored outside of the original manufacturing environment, which requires specialised high-temperature processing incompatible with a used rotor.

With the coating removed, the softer C/SiC composite substrate is exposed. This material has different friction characteristics, a different wear rate, and different thermal behaviour than the SiC coating. Machining a composite material with metallic cutting tools can also introduce delamination, fibre pullout, and micro-cracking. Even diamond tooling risks damaging the internal fibre architecture.

The exposed substrate is porous with variable composition at the micro-level, alternating between carbon fibre and SiC matrix. This creates an inconsistent friction surface producing variable braking force, increased noise, and accelerated pad wear. In short, machining a carbon ceramic rotor permanently destroys the engineered friction surface and compromises the composite beneath it. The rotor would be unsafe after machining.

For background on how the SiC coating is applied during original manufacturing, see our complete guide to carbon ceramic brakes.

Wear Assessment: Monitoring Instead of Resurfacing

Since resurfacing is not an option, the correct maintenance approach is monitoring wear and replacing when necessary. With AME Motorsport's CCB rotors, that replacement point is a very long time from initial installation.

AME Motorsport CCB Service Life

CCB rotors are engineered for 150,000 to 300,000-plus kilometres of street use, delivering consistent friction characteristics throughout. This extraordinary longevity results from three engineering factors working together: SiC coating exceeding 0.8mm providing 5x wear resistance, long fibre carbon ceramic construction creating a crack-resistant substrate, and thorough CVI infiltration ensuring full matrix densification.

For most street-driven vehicles, CCB rotors will outlast multiple sets of brake pads and potentially outlast the vehicle itself. For detailed longevity data, read how long do carbon ceramic brakes last.

Thickness Measurement

Every carbon ceramic rotor has a minimum thickness specification. To measure, remove the wheel to access the rotor face, use a brake rotor micrometer or vernier caliper to measure at multiple points around the circumference, take measurements at inner, middle, and outer portions of the friction surface, and compare the thinnest measurement against the minimum specification for your application.

Visual Surface Inspection

Examine both friction surfaces for uniform appearance in colour and texture, which indicates even coating wear. Light surface marks are normal, but deep grooves that catch a fingernail suggest pad contamination or foreign material damage. Fine surface crazing can be normal on high-performance rotors, but cracks extending more than a few millimetres, deep enough to catch a fingernail, or connecting into network patterns warrant specialist evaluation. Minor edge wear is expected, but significant chipping or material loss indicates potential structural issues. On CCB rotors, look for areas where the SiC coating appears worn through completely, exposing the darker substrate beneath.

Vibration and Pulsation Diagnosis

Brake vibration or pedal pulsation does not necessarily indicate the rotor needs replacement. Uneven pad deposits are often resolved by repeating the bedding procedure. Pad material contamination may resolve with fresh pads. Rotor surface glazing sometimes responds to a controlled series of moderate stops. Only persistent vibration after these corrective steps warrants professional inspection for surface irregularity.

For guidance on selecting replacement pads, see best brake pads for carbon ceramic rotors.

The Replacement Process

When rotors reach end of service life, replacement with AME Motorsport kits is straightforward.

Confirming Your Application

Verify the correct part number for your vehicle. AME Motorsport offers vehicle-specific kits for applications from the Porsche 991 Turbo S/GT3 to the BMW M2/M3/M4 F/G Series, each designed for direct bolt-on fitment.

Installation Considerations

Follow specified torque values precisely, as carbon ceramic rotors may mount differently than iron rotors in some applications and over-torquing can cause damage. Replace any single-use fasteners, retaining bolts, or clips. Always install fresh brake pads with new rotors, because used pads have a surface profile matched to the old rotor that will not make proper contact with the new surface. Complete the recommended bedding procedure to establish the pad transfer layer on the new friction surface.

Post-Installation Verification

Verify free wheel rotation with no drag or interference. Check rotor runout with a dial indicator if possible. Complete the bedding procedure before subjecting brakes to high-performance use. Re-torque fasteners after the first 100 kilometres of driving.

For comprehensive installation guidance, refer to the carbon ceramic brake installation and maintenance guide.

Lifecycle Cost Comparison: Carbon Ceramic Versus Iron

Over 200,000 kilometres of ownership, a performance vehicle with iron rotors might require 4 to 6 sets of rotors, 6 to 10 sets of brake pads, associated labour for each replacement, potential caliper service from heat-related seal degradation, and more frequent brake fluid changes due to higher operating temperatures.

Over the same distance with AME Motorsport CCB rotors, typically one set of carbon ceramic rotors covers the entire period, with 3 to 5 sets of brake pads needed, minimal caliper service thanks to lower heat transfer, and less frequent brake fluid changes.

While the initial investment in carbon ceramic is higher, the dramatically reduced frequency of maintenance events narrows the cost gap significantly over the vehicle's lifetime. For detailed analysis, see our guide on carbon ceramic brake costs.

Common Refurbishment Myths

Sanding or polishing restores the surface. In reality, any abrasion removes SiC coating material. Even if the surface appears smoother, you have reduced coating thickness and potentially created an uneven surface that accelerates wear and compromises friction consistency.

Diamond cutting tools can safely machine carbon ceramic. While diamond tooling can physically cut the material, it still removes the SiC coating and exposes the substrate. The issue is not whether the tool can cut, but that the material structure is not designed to be machined and resurfaced.

Worn rotors can be re-coated with new SiC. The SiC coating process occurs during original manufacture under precisely controlled conditions of temperature, atmosphere, gas composition, and duration. A used rotor with pad deposits, wear patterns, and microscopic surface damage cannot be recoated to original production standards.

Carbon ceramic rotors wear out quickly, making resurfacing useful. This assumes carbon ceramic wears at rates comparable to iron, which is incorrect. AME Motorsport's CCB rotors deliver 150,000 to 300,000-plus kilometres of service life. By the time rotors need attention, they have far exceeded what any iron rotor could achieve.

Track use destroys carbon ceramic rotors rapidly. Track use does accelerate wear compared to pure street driving, but carbon ceramic rotors are engineered for exactly this application. AME Motorsport's CCB rotors handle combined street and track use, while the CCM line is optimised specifically for dedicated track cars. For further information on how to inspect your carbon ceramic rotors for wear signs, consult our dedicated inspection guide.

Recommended Brake Pads for Carbon Ceramic Rotors

When upgrading to carbon ceramic rotors, selecting the correct brake pad compound is essential. Standard metallic pads must never be used on carbon ceramic surfaces. AME Motorsport recommends these proven carbon ceramic compatible compounds:

• Pagid RSC Series — European racing heritage, three compounds (RSC1 street, RSC2 endurance, RSC3 sprint) covering every driving scenario
• Barbaro Racing — Italian motorsport lineage with compounds from whisper-quiet C-01 to RS-635 competition
• NetzschRacing — German precision engineering with Street, Race, and Carbon Ceramic Series
• Schaffen ZZ Racing — Asian touring car championship pedigree, validated in extreme heat and humidity

For detailed compound comparisons: Best Brake Pads for Carbon Ceramic Rotors

Frequently Asked Questions

Can you resurface or machine carbon ceramic brake rotors?

No. Carbon ceramic rotors have an engineered SiC surface coating that cannot be restored once removed by machining. Unlike iron rotors, which are the same material throughout, carbon ceramic rotors have a distinct surface layer designed specifically as the friction interface. Machining permanently destroys this layer, exposing the C/SiC substrate that is not designed as a friction surface. The rotor would be unsafe after machining.

How long do carbon ceramic rotors last before needing replacement?

AME Motorsport's CCB rotors are engineered for 150,000 to 300,000-plus kilometres of street use. Actual lifespan depends on driving style, vehicle weight, climate, and track use frequency. Even with combined street and track use, carbon ceramic rotors far outlast iron alternatives.

What are the signs that a carbon ceramic rotor needs replacement?

Key indicators include rotor thickness at or below the minimum specification, deep surface cracks forming connected networks, visible areas where the SiC coating has worn through completely, edge chipping or material loss, persistent vibration that does not respond to pad replacement or re-bedding, and any visible delamination between composite layers.

Is it cheaper to replace carbon ceramic rotors or switch back to iron?

While individual carbon ceramic replacement costs more than a single set of iron rotors, the lifecycle comparison favours carbon ceramic. Over 200,000 kilometres, iron rotors may need 4 to 6 replacements plus more frequent pad changes, while carbon ceramic may need zero or one replacement. The total cost of ownership is often comparable or favourable for carbon ceramic.

Can I replace just one carbon ceramic rotor, or must they be replaced in pairs?

Best practice is to replace rotors in axle pairs. New and worn rotors have different thickness, surface finish, and potentially different friction characteristics. Replacing in pairs ensures balanced braking performance and consistent wear.

Do I need new brake pads when replacing carbon ceramic rotors?

Yes. Always install new brake pads when fitting new carbon ceramic rotors. Used pads have a surface profile matched to the old rotor and will not make proper contact with the new friction surface. New pads must be properly bedded to the new rotors following AME Motorsport's recommended bedding procedure.

Where can I get replacement AME Motorsport carbon ceramic rotors?

AME Motorsport offers direct-fit carbon ceramic kits for a wide range of vehicles. Browse specific product pages for applications like the Audi RS6 C8, Lamborghini Huracan, or Porsche 992 GT3/Turbo S.
