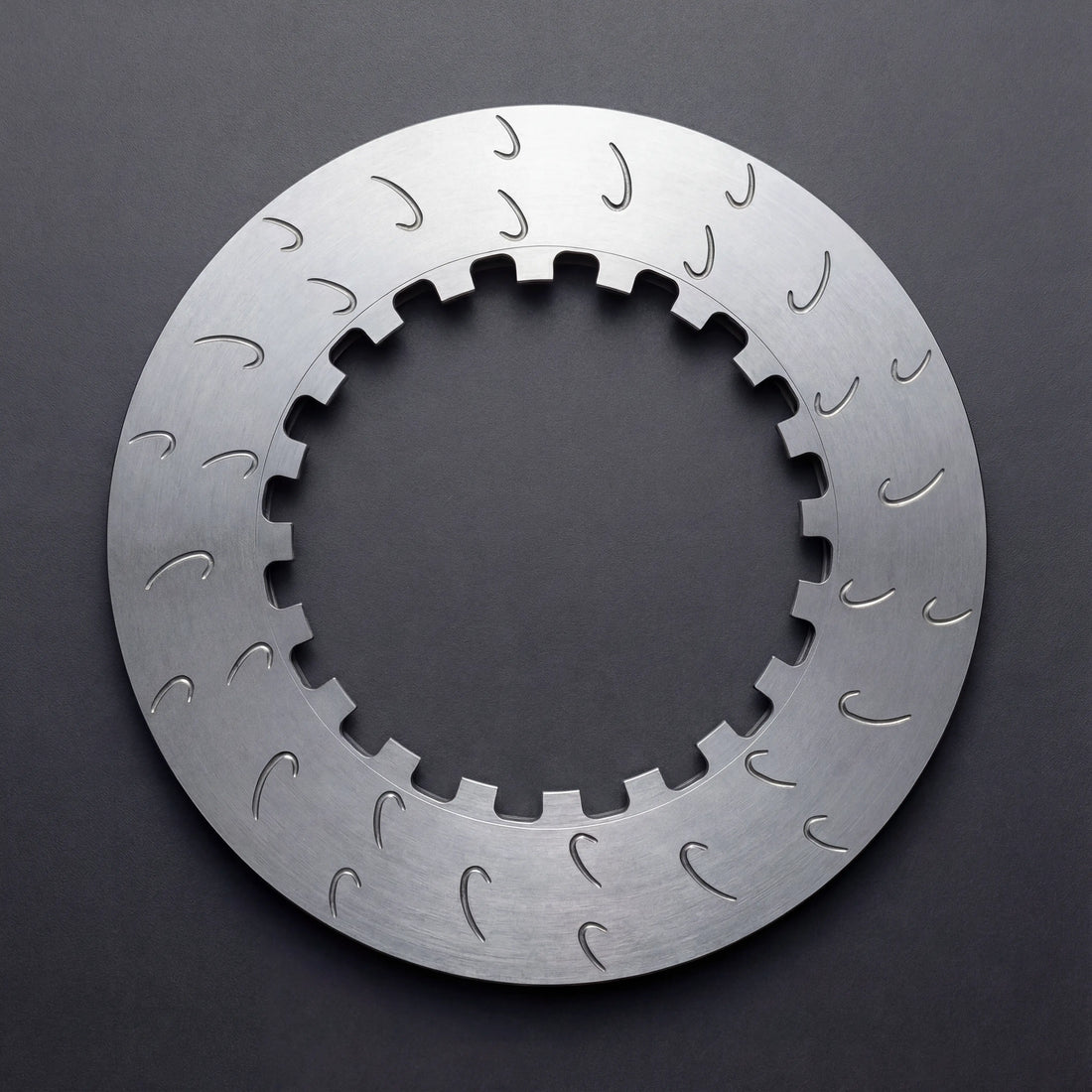

Schaffen HC Racing Brake Rotors: The Ultimate Multi-Element Alloy Grey Iron Disc for Professional Motorsport
When professional racing teams demand absolute stopping power without compromise, they turn to purpose-built brake rotors engineered specifically for the rigors of competitive motorsport. The Schaffen HC Series Multi-Element Alloy Racing Brake Rotors represent the pinnacle of grey iron brake technology, developed through years of real-world racing validation and metallurgical refinement.
What Makes Schaffen HC Racing Brake Rotors Different?
Unlike conventional OEM or aftermarket brake rotors designed for street use, the Schaffen HC series was born from professional motorsport requirements. The base grey iron composition was originally sampled from PFC (Performance Friction Corporation) Porsche Cup racing brake rotors—the same components trusted by championship-winning teams in one of the world's most demanding single-make racing series.
Technical Specifications
The Schaffen HC utilizes a precisely formulated multi-element alloy grey iron composition:
Chemical Composition:
- Carbon (C): 3.5-3.7%
- Silicon (Si): 2.1-2.3%
- Manganese (Mn): 0.9-1.2%
- Copper (Cu): 0.5-0.8%
- Chromium (Cr): 0.5%
Metallurgical Properties:
- Pearlite Content: 90%+
- Carbon Equivalent (CE%): 3.9-4.3
- Graphite Length: Grade 3-5
- Brinell Hardness: HB 210-220
- Tensile Strength: 230-250 MPa
This carefully balanced composition delivers exceptional thermal stability, crack resistance, and consistent friction characteristics across a wide temperature range—critical requirements for endurance racing applications.
Understanding the Metallurgy: Why Composition Matters
For serious track enthusiasts and racing professionals, understanding brake rotor metallurgy is essential for making informed decisions. The Schaffen HC composition represents years of development to optimize the balance between competing performance characteristics.
The Role of Each Element
Carbon and Silicon work together to control the graphite structure and matrix hardness. The 3.5-3.7% carbon range combined with 2.1-2.3% silicon creates an optimal carbon equivalent that promotes consistent graphite formation while maintaining the structural integrity required for high-temperature operation.
Manganese (0.9-1.2%) serves dual purposes: it acts as a deoxidizer during casting and promotes pearlite formation in the matrix structure. The higher manganese content compared to standard grey iron contributes to the HC's superior wear resistance under racing conditions.
Copper (0.5-0.8%) is a key differentiator in the HC formula. Copper promotes pearlite stability, refines the graphite structure, and improves thermal conductivity—essential for dissipating the tremendous heat generated during sustained hard braking.
Chromium (0.5%) provides additional carbide stabilization without the brittleness associated with higher chromium content. This controlled addition ensures consistent pedal feel and prevents the thermal cracking that plagues lesser brake rotors.
Why Pearlite Content Matters
The 90%+ pearlite content in Schaffen HC rotors is a critical specification that directly impacts performance. Pearlite—the microstructure consisting of alternating layers of ferrite and cementite—provides the ideal balance of hardness and ductility for brake rotor applications.
High pearlite content delivers:
- Superior wear resistance under repeated thermal cycling
- Consistent friction coefficient across temperature ranges
- Better resistance to thermal cracking
- Improved dimensional stability during heat-cool cycles
Proven Race Track Performance
The true test of any racing component is real-world performance under competitive conditions. The Schaffen HC series has accumulated an impressive track record since its introduction in 2022:
Championship Victories and Professional Applications
CEC (China Endurance Championship): Since 2022, Zhongbao BMW GT4 cars running F and G chassis have utilized Schaffen HC rotors front and rear, capturing the annual Grand Slam championship title. This endurance racing success demonstrates the HC's ability to maintain consistent performance over extended periods of intense use.
TCR Series Applications: Multiple TCR racing teams have adopted the HC series for their race cars, including:
- Volkswagen TCR
- Audi TCR
- Hyundai TCR
- SEAT TCR
GT Racing Platforms: The HC series has proven itself across various GT racing classes:
- BMW F/G Chassis GT4
- Mercedes-AMG GT4/GT3
- Audi R8 GT4/GT3
- Aston Martin GT4
- KTM GT4
Notable Race Team Partnerships
Jiren Racing Team - Complete TCR fleet running HC rotors for all race applications since 2024
MPracing - Multiple GT race cars equipped with HC rotors for professional competition since 2022
Tianshi Racing Team - GT race car fleet utilizing HC rotors since 2024
Lynk & Co Cup Series - 40 vehicles running HC rotors across all official race applications, training sessions, and promotional events since 2024
International Presence
The Schaffen HC series has established its reputation beyond Asian motorsport:
Australia - Queensland Raceway:
- King of QR series racing applications (2023-present)
- Replica Tourers series applications (2025-present)
Endurance Racing Validation
One of the most demanding tests for any brake rotor is endurance racing. At the Shanghai 8-Hour Endurance Race, an F-chassis BMW GT4 (notably one of the heavier cars in its class) completed the full 8-hour race without requiring rotor replacement, running PFC brake pads throughout. Post-race inspection confirmed the rotors remained within specification—a testament to the HC's exceptional thermal management and structural integrity.
Product Characteristics: What to Expect
Performance Advantages
Exceptional Wear Resistance: The multi-element alloy composition provides significantly longer service life compared to standard grey iron rotors under racing conditions.
Superior Crack Resistance: Optimized graphite structure and controlled alloy additions minimize thermal cracking, even during the most demanding endurance applications.
Firm Pedal Feel: The high pearlite content and controlled hardness deliver the responsive, predictable pedal feel that professional drivers demand for precise brake modulation.
High Friction Coefficient: Compatible with premium racing brake pads from manufacturers including Pagid, PFC, Winmax, and Endless without the glazing or friction inconsistency that can plague lesser rotors.
Important Considerations
Surface Treatment: The HC series features a rust-preventive oil coating rather than zinc or paint coatings. This approach ensures maximum floating precision for two-piece assemblies but means the rotors are not suitable for extended storage in humid conditions.
Application Focus: The HC series is designed specifically for pure track and racing applications. For street/track combination use, consider rotors with protective coatings designed for dual-purpose applications.
Warranty Coverage: Pre-installation damage including cracks and gear tooth fractures is covered under transportation warranty. Once installed, warranty coverage does not apply—standard practice for pure racing components.
Manufacturing Process
Each Schaffen HC rotor undergoes a rigorous production process:
- Custom Alloy Formulation: Precise control of the molten metal composition to achieve target specifications
- Controlled Cooling (Annealing): Stress-relief heat treatment to ensure dimensional stability
- 72-Hour Heat Treatment: Extended thermal processing at temperatures up to 900°C with controlled electrical heating
- Precision Machining: Final machining to engineering drawings with tight tolerance control
Compatibility with Premium Brake Pads
The Schaffen HC series is engineered to work seamlessly with the world's leading racing brake pad compounds:
PFC (Performance Friction): The original brake pad manufacturer whose Porsche Cup rotors inspired the HC composition. PFC compounds ranging from street performance (PFC 64) to full racing (PFC 11) pair excellently with HC rotors.
Pagid Racing: German-engineered racing compounds including the RSL series perform consistently on the HC's high-pearlite surface.
Winmax: Japanese performance compounds designed for both street and track applications.
Endless: Premium Japanese racing compounds trusted by professional teams worldwide.
The 90%+ pearlite matrix and controlled graphite structure ensure consistent pad-to-rotor interface characteristics, minimizing bedding time and delivering predictable performance from installation.
Choosing the Right Brake System for Your Application
Selecting brake components requires understanding your specific use case and vehicle platform. Here's how to determine if Schaffen HC rotors are right for you:
Ideal Applications:
- Dedicated track day vehicles
- Professional racing series competition
- GT and touring car racing
- Endurance racing events
- Time attack and sprint racing
Consider Alternatives If:
- You require dual street/track functionality
- Your vehicle will be stored for extended periods
- You prefer protective coatings for appearance
- Your application doesn't demand pure racing performance
Complete Your Brake System Upgrade
A brake rotor upgrade achieves maximum effectiveness when combined with complementary components. At AME Motorsport, we offer comprehensive braking solutions for serious enthusiasts:
High-Performance Brake Kits
Explore our complete Brake Kits Collection featuring premium multi-piston calipers from trusted manufacturers including:
- Motve Racing Calipers - Professional-grade 4, 6, and 8-piston caliper systems
- TTSPORT Brake Kits - Complete front and rear brake upgrade packages
Platform-Specific Solutions
BMW Enthusiasts: Our extensive BMW Performance Parts catalog includes brake, suspension, and exhaust upgrades for all popular M-car platforms including the F80 M3, F82/F83 M4, G80/G82 M3/M4, and BMW GT4 race cars.
German Performance: Shop our Mercedes-Benz and Audi collections for AMG and RS-series brake upgrades.
Japanese Performance: Explore solutions for Toyota GR Supra, Nissan GT-R, and Honda Type R platforms.
Suspension Systems for Complete Track Performance
Braking performance is inseparable from chassis dynamics. Our Suspension Systems collection includes coilover kits, chassis reinforcement, and shock absorbers from RSS, GD Mugen, and DWD Racing to complement your brake upgrades.
Cooling Solutions
Track driving generates tremendous heat. Ensure your engine bay can handle the demands with our Cooling System upgrades including enlarged radiators and intercoolers.
About AME Motorsport
AME Motorsport is Australia's leading supplier of premium performance parts for serious enthusiasts and professional racing teams. Based in Brisbane, Queensland, we serve customers across Australia, New Zealand, North America, and Europe.
Our team combines real-world track experience with technical expertise to help you select the right components for your specific application. Whether you're building a dedicated track car or enhancing your weekend warrior, we're here to help you achieve your performance goals.
Contact Us:
- Phone/WhatsApp: +61 481 225 000
- Email: info@automodexpress.com
- Location: Brisbane, Queensland, Australia
Frequently Asked Questions
Q: Are Schaffen HC rotors suitable for street driving?
A: The HC series is designed specifically for pure track and racing applications. The oil-only surface treatment and pure racing optimization mean they're not ideal for street use where protective coatings and street-oriented friction characteristics are preferred.
Q: What brake pads should I use with HC rotors?
A: The HC series is compatible with premium racing compounds from PFC, Pagid, Winmax, Endless, and other reputable racing brake pad manufacturers. Avoid budget pads that may not withstand the thermal demands these rotors are designed to handle.
Q: How do HC rotors compare to carbon ceramic brakes?
A: While carbon ceramic brakes offer weight savings and extreme temperature resistance, the Schaffen HC provides superior initial bite, more linear pedal feel, and significantly lower replacement costs—making them the preferred choice for many professional racing teams.
Q: What is the expected service life?
A: Service life depends heavily on application, driving style, and pad compound selection. In endurance racing applications (like the Shanghai 8-Hour), the rotors have completed full race distances without replacement. Regular inspection according to your series rules and operating conditions is recommended.
Q: Can I use HC rotors on my street car for occasional track days?
A: While technically possible, this isn't the intended use case. For street/track combination applications, consider rotors with protective coatings designed for dual-purpose use. The HC's lack of protective coating means rust formation during street storage periods.
