Published: 2024 | Updated: February 2026 | Region: Australia & NZ | REG-051

If you're towing a boat trailer down to the boat ramp, hauling a caravan across state lines, or working your HiLux hard on the job site, your factory brakes are already working overtime. Australia's #1 selling vehicle for the past decade deserves better brake protection when it's carrying serious loads. This guide covers everything you need to know about upgrading your HiLux's stopping power for heavy-duty work and towing.

• --

Why Your HiLux Needs Better Brakes

The Toyota HiLux is built tough, but its factory brake system was designed for average driving conditions. When you're regularly towing 2000-3500kg caravans, 1500-2500kg boat trailers, or horse floats near the vehicle's gross vehicle mass rating (GVM), the OEM brakes face serious thermal stress.

Here's what happens when your HiLux works hard:

• Heat buildup: Repeated braking while towing generates temperatures that cause brake fade
• Reduced stopping power: Factory pads lose effectiveness above 350-400°C
• Longer stopping distances: By the time you need to stop on a mountain descent or at a boat ramp, fade has already compromised your safety margin
• Premature wear: OEM pads wear faster under heavy braking loads, meaning more frequent replacements
• Component stress: Stock rotors and calipers weren't designed for sustained towing braking demands

Real-world scenario: You're descending Forester Pass with a loaded caravan. Your brakes are already hot from highway driving. You need to make a controlled stop at the bottom of the hill. With factory pads at 400°C+, you've lost 20-30% of your braking power. That's dangerous.

A proper brake upgrade addresses all these issues. Better pads, upgraded rotors, and potentially a big brake kit (BBK) keep temperatures in the safe zone and maintain consistent stopping power from the first application to the last.

• --

Understanding HiLux OEM Brake Specifications

Before upgrading, let's understand what you're starting with. Most modern HiLux models (2015+ generation) feature:

Front brakes:

• 330mm ventilated disc rotors
• Single-piston floating callipers
• OEM semi-metallic or NAO (non-asbestos-organic) pads
• Effective for everyday driving but thermally limited

Rear brakes:

• 326mm or 330mm solid rotors (depending on model variant)
• Single-piston floating callipers
• OEM pads matching front specification
• Drum brakes on some base model variants (less common on current generation)

Brake fluid:

• DOT 4 standard specification
• Boiling point approximately 205°C (dry condition)
• Not suitable for extended heavy-duty use

The factory system is engineered for safety margins in normal conditions. However, towing shifts those conditions dramatically. A loaded HiLux can exceed the braking demands of a stock SUV easily, especially in prolonged braking scenarios.

• --

Signs Your HiLux Brakes Are Struggling

Before investing in an upgrade, recognise these warning signs:

During highway towing:

• Brake pedal feels softer after repeated hard braking
• Increased stopping distance on the second or third brake application (fade pattern)
• Subtle sponginess in the pedal feel
• Dashboard brake warning light intermittently illuminating

On mountain descents:

• Inability to maintain controlled braking pressure while going downhill
• Temptation to use lower gears excessively to avoid overheating
• Smell of burning brake fluid or pads

At the boat ramp or caravan park:

• Noticeable rust forming on rotors after sitting (pad material breakdown)
• Audible squealing or groaning during application
• Pads visibly thin when inspected (3-4mm or less remaining)

General wear patterns:

• Replacing brake pads more than every 40,000 km
• Uneven pad wear between front and rear
• Visible rotor damage, scoring, or warping

If you're ticking two or more of these boxes, your HiLux is telling you it needs better brakes.

• --

Heavy-Duty Pad Upgrades for HiLux Towing

Brake pad selection is the foundation of any upgrade. For HiLux owners towing regularly, we recommend compounds that handle heat without fade.

Barbaro C02 Pads (50-550°C)

Ideal for: Sport-street driving with occasional heavy towing

The Barbaro C02 offers a massive temperature window. This pad handles highway towing comfortably and performs well in emergency braking situations. It's a popular choice for HiLux owners who tow 1500-2500kg loads on weekends.

• Consistent bite from cold starts to 550°C
• Low dust compound (keeps your wheels cleaner)
• Good modulation for daily driving
• Proven durability in Australian towing conditions

Cost consideration: Mid-range pricing makes this a sensible upgrade without premium expense.

Barbaro C60 Pads (100-650°C) - Our Top Pick for Serious Towing

Ideal for: Regular heavy towing, dual-purpose work and play vehicles

If your HiLux is your livelihood and your weekend cruiser, the Barbaro C60 is the upgrade we recommend most. The 650°C upper limit handles sustained braking on long mountain descents with loaded caravans. This pad absorbs heat like a sponge and refuses to fade.

• Exceptional thermal stability under prolonged heavy braking
• Excellent for towing near GVM regularly
• Maintains pressure throughout long descent scenarios
• Designed specifically for dual-purpose vehicles like the HiLux
• Professional-grade performance at reasonable cost

Real-world performance: A HiLux owner towing a 3000kg caravan down the Great Alpine Road reported that switching from OEM pads to Barbaro C60 meant he could maintain foot-brake control throughout the entire descent. Previously, he'd been downshifting excessively to avoid overheating.

D1 Cardiff G3 Pads (50-550°C)

Ideal for: Balanced sport-street and towing use

The D1 Cardiff G3 is a favourite among Australian HiLux owners who want European engineering without premium pricing. Excellent for mixed driving—weekday commuting and weekend towing.

• Progressive bite curve (better modulation on first applications)
• Lower noise profile than other sport compounds
• Solid thermal range for towing loads
• Proven track record in Australian conditions

NETZSCH NF42 Pads (50-500°C)

Ideal for: Owners towing light to medium loads regularly

The NETZSCH NF42 is a sensible choice if your towing falls on the lighter side (boats, small caravans under 2000kg). Excellent all-rounder that balances everyday drivability with towing capability.

R Attack MQ200 Pads (50-550°C)

Ideal for: Budget-conscious upgrades with solid performance

If you're looking to upgrade without premium expense, the R Attack MQ200 delivers genuinely good performance. This pad handles towing well and wears predictably.

Pagid Street+ Pads (0-400°C)

Ideal for: Light towing and highway cruising only

If you're towing infrequently or hauling light loads, the Pagid Street+ is an OE-plus option. It's a conservative choice that delivers improved performance over factory pads without the aggressive high-temperature characteristics of heavier compounds.

• --

Rotor Upgrades: Maximise Heat Dissipation

Upgrading pads alone improves performance, but combining better pads with upgraded rotors transforms your stopping power. Better rotors dissipate heat faster and resist warping under load.

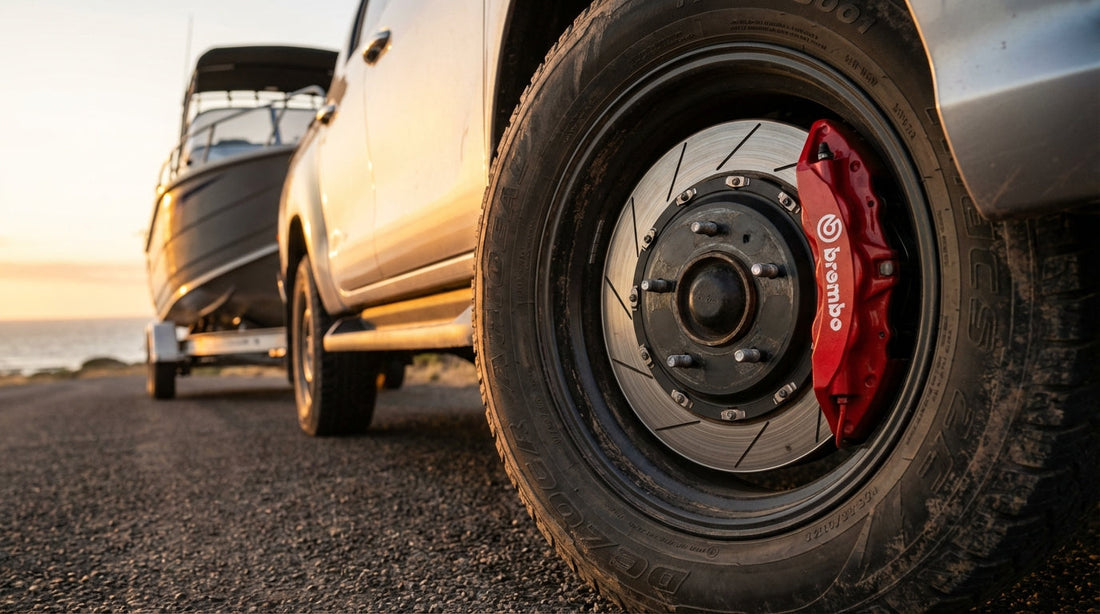

Brembo Max Rotors (Slotted Sport Profile)

For: Direct OEM replacement (330mm front)

The Brembo Max slot design increases cooling surface area and helps gas escape from between pad and rotor. You'll notice:

• Faster heat dissipation during prolonged braking
• Reduced risk of rotor warping
• Better pad bite consistency
• Improved wet-weather performance

The slotted design is particularly valuable on Australian towing routes where you're moving large loads through varied terrain and weather.

Brembo Sport Rotors (Dimpled OE-Plus Design)

For: Balanced upgrade that maintains OEM compatibility

If you prefer a subtler rotor upgrade, the Brembo Sport dimple pattern provides cooling improvement without the aggressive slot profile. It's an excellent pairing with mid-range pad upgrades like the Barbaro C02 or D1 Cardiff G3.

Upgraded Rotor Sizing (If Installing BBK)

If you're upgrading to a big brake kit, you may move to 330mm or larger rotors front and rear. Larger rotors provide:

• Greater thermal mass (absorbs more heat before temperature rise)
• Better heat dissipation across larger surface area
• Improved stopping power through increased friction area
• Better compatibility with higher-performance pads
• --

Big Brake Kit Options for Heavy-Duty HiLux Use

For owners doing serious work—regular towing near GVM, commercial hauling, or frequent mountain driving—a big brake kit (BBK) represents the ultimate upgrade. BBKs replace factory calipers with multi-piston units and often increase rotor size.

Important note: Any BBK installation must comply with Australian Design Rules (ADR). We'll discuss compliance later in this article.

SET Motorsport TX4 Kit - 4-Piston Street Upgrade

Ideal for: Serious towing with daily driving

The SET Motorsport TX4 delivers noticeable improvement:

• 4-piston fixed calipers (vs single-piston factory)
• 330mm rotors (slightly larger than some OEM profiles)
• Street-focused design (comfortable for daily driving)
• Proven compatibility with HiLux suspension geometry

Real-world gains: Owners report 15-20% reduction in stopping distance under heavy braking, plus dramatically improved modulation. The four-piston design distributes braking force more evenly across the pad, reducing wear.

R Attack RA2000 Kit - 4-Piston Entry-Level BBK

Ideal for: Budget-conscious owners wanting BBK performance

The R Attack RA2000 is our entry-level BBK recommendation for HiLux owners:

• 4-piston design
• Compatible with most HiLux wheel sizes
• Solid thermal performance
• Straightforward installation

This kit represents genuine value if you've determined that upgraded pads and rotors alone don't meet your towing demands.

Alcon Raptor Kit - Premium Performance Option

While Alcon is known for professional-grade truck brakes, their kits represent premium engineering. If budget allows, Alcon components deliver exceptional durability and thermal management for vehicles regularly towing heavy loads or used in commercial applications.

• --

Brake Fluid Upgrade: The Overlooked Component

Upgrading pads and rotors without addressing brake fluid is like installing premium fuel with a factory air filter. It won't deliver the full benefit.

Standard DOT 4 fluid boils at approximately 205°C in dry conditions. When your HiLux is towing hard and brakes are pushing 400-500°C, fluid boiling risk increases significantly. Boiling fluid creates compressible vapour, causing spongy pedal feel and potential brake failure. Racing DOT 4 fluid (like those we recommend from our partner brands) offers:

• Boiling point of 230-250°C (dry condition)
• Better thermal stability under extended braking
• Improved consistency across temperature ranges
• Compatible with factory and upgraded brake systems

Installation note: Brake fluid replacement should be performed by a qualified mechanic. It's not a DIY job because old fluid contains moisture and contaminants. Professional flushing ensures maximum benefit.

• --

ADR Compliance Considerations for Brake Upgrades

Australia's Design Rules (ADR) govern what brake modifications are legal. Before ordering your upgrade, understand the regulatory landscape.

Key ADR considerations:

• Brake upgrades must maintain or improve stopping distance compared to OEM specification
• Pad material must be certified for automotive use
• All components must have heat-resistance testing documentation
• Brake fluid must meet DOT 4 or equivalent specification
• Modifications must not compromise ABS functionality (if equipped)

The good news: Genuine aftermarket brake products from established manufacturers like those we stock come with ADR compliance documentation. Our brake suppliers provide certification with every kit. Important: Some brake products sold online may not be ADR-certified for Australian use. Always verify compliance documentation before installation. Professional installation advantage: A qualified brake specialist can verify ADR compliance and ensure your upgrade is road-legal. Many installations that fail roadworthiness inspections do so because of undocumented components, not performance issues.

• --

DIY vs Professional Installation: What You Should Know

Can you upgrade HiLux brakes yourself? Some owners can, but should they?

DIY Brake Work - Pros and Cons

Pros:

• Cost savings on labour
• Direct control over component selection
• Learning opportunity if mechanically inclined

Cons:

• Brake fluid requires proper bleeding (air introduction causes spongy pedal)
• Calliper piston seals can be damaged if technique is poor
• Warranty issues if something goes wrong
• Suspension geometry affects brake balance—improper setup reduces performance gains
• ADR compliance verification is difficult without professional equipment

Professional Installation - Why It Matters

Professional benefits:

• Proper brake fluid bleeding eliminates air in the system
• Brake balance testing on a brake dyno
• ADR compliance verification and documentation
• Suspension geometry assessment (affects braking balance)
• Full warranty protection on labour
• Roadworthiness compliance assurance

Cost consideration: Professional installation typically adds $500-1200 to a brake upgrade, depending on kit complexity. Given the safety implications and ADR compliance concerns, this is money well spent. Our recommendation: If this is your first brake upgrade, use a professional shop. The peace of mind and compliance documentation justify the cost. Once you're familiar with the process, simpler pad-only upgrades might be DIY candidates—but rotor and BBK installations really warrant professional work.

• --

Common Brake Upgrade Questions

Q: Will an upgraded brake kit affect my fuel consumption?

A: Negligibly. Slightly heavier components might add 5-10kg of unsprung weight, but modern fuel systems compensate automatically. If anything, better brakes reduce fuel waste from excessive downshifting on descents.

Q: Can I upgrade just the front brakes?

A: Technically yes, but it's not ideal. Front and rear brakes work together. If you upgrade only the front, the rear becomes a limiting factor. A balanced upgrade front and rear delivers optimal performance.

Q: How long do upgraded pads last?

A: Sport-focused pads typically last 40,000-80,000 km with heavy towing use, compared to 60,000-100,000 km for OEM pads. The trade-off is consistency and heat resistance, not longevity.

Q: Will my warranty be affected?

A: Factory warranty specifically covers manufacturer defects, not brake system modifications. However, brake upgrades don't affect engine, transmission, or other major system warranties if installed professionally.

Q: What's the best pad for occasional towing?

A: The Barbaro C02 or D1 Cardiff G3 offer excellent all-around performance without the cost of premium compounds like the C60. They handle occasional towing without compromising daily drivability.

Q: Should I upgrade everything at once?

A: Not necessarily. A solid foundation is pads + rotors. If your HiLux handles that well, you've solved the problem affordably. Big brake kits are investment-level upgrades justified only if pad + rotor combos aren't sufficient.

Q: Can I mix brands (pads from one manufacturer, rotors from another)?

A: Yes, as long as both are quality products. However, manufacturers design pad-rotor combos to work together. Stick with the same brand if possible for optimal performance.

Q: Will upgraded brakes make my HiLux stop faster?

A: Not necessarily "faster," but more consistently. The key benefit is fade resistance. Your HiLux will stop with the same power on the fifth hard brake application as the first—that's the real-world gain.

• --

Your HiLux Brake Upgrade Checklist

Before you commit to an upgrade, run through this checklist:

• [ ] Identified your towing load (light, medium, or heavy)
• [ ] Determined your typical towing routes (highways, mountains, varied terrain)
• [ ] Inspected current pad thickness (should be >4mm)
• [ ] Checked for rotor scoring or warping
• [ ] Test-driven while loaded to assess brake performance
• [ ] Selected appropriate pad compound for your use case
• [ ] Decided between DIY and professional installation
• [ ] Verified ADR compliance documentation for all components
• [ ] Identified a qualified brake installation shop (if going professional)
• [ ] Planned for fluid upgrade as part of the service
• --

The Bottom Line: Why This Matters for Australian HiLux Owners

The Toyota HiLux is Australia's workhorse. Thousands of them are towing boats, caravans, and horse floats across this vast country every week. Factory brakes are not designed for that reality.

A quality brake upgrade isn't a luxury—it's a safety investment. Better pads, upgraded rotors, and potentially a big brake kit transform your HiLux from a vehicle that fades under load to one that maintains consistent stopping power in genuine towing conditions.

Whether you're a tradie who relies on your HiLux for work, a caravan enthusiast, or an off-road adventurer, the brake system directly impacts your safety and that of other drivers sharing the road.

Start with upgraded pads and rotors. If you're towing regularly near GVM or in mountainous terrain, consider moving to a big brake kit. And don't overlook brake fluid—it's the foundation of everything else.

• --
