Motve MR1 High-Performance Racing 6 Pistons Caliper Brake System
Motve MR1 High-Performance Racing 6 Pistons Caliper Brake System
Motve MR1 High-Performance Racing 6 Pistons Caliper Brake System
Motve MR1 High-Performance Racing 6 Pistons Caliper Brake System
Motve

Motve MR1 High-Performance Racing 6 Pistons Caliper Brake System

Vorrätig
SKU: MOTVE-MR1_2159
$4,999.00 inc. VAT
Brake Discs Size
Model

Product details

  • Verkäufer Motve
  • SKU MOTVE-MR1_2159

100% Satisfaction Guaranteed

  • Consistently receives highest buyers ratings
  • Ships items quickly
  • Has earned a track record of excellent service

Refund Policy
Shipping Policy

Description Shipping Information

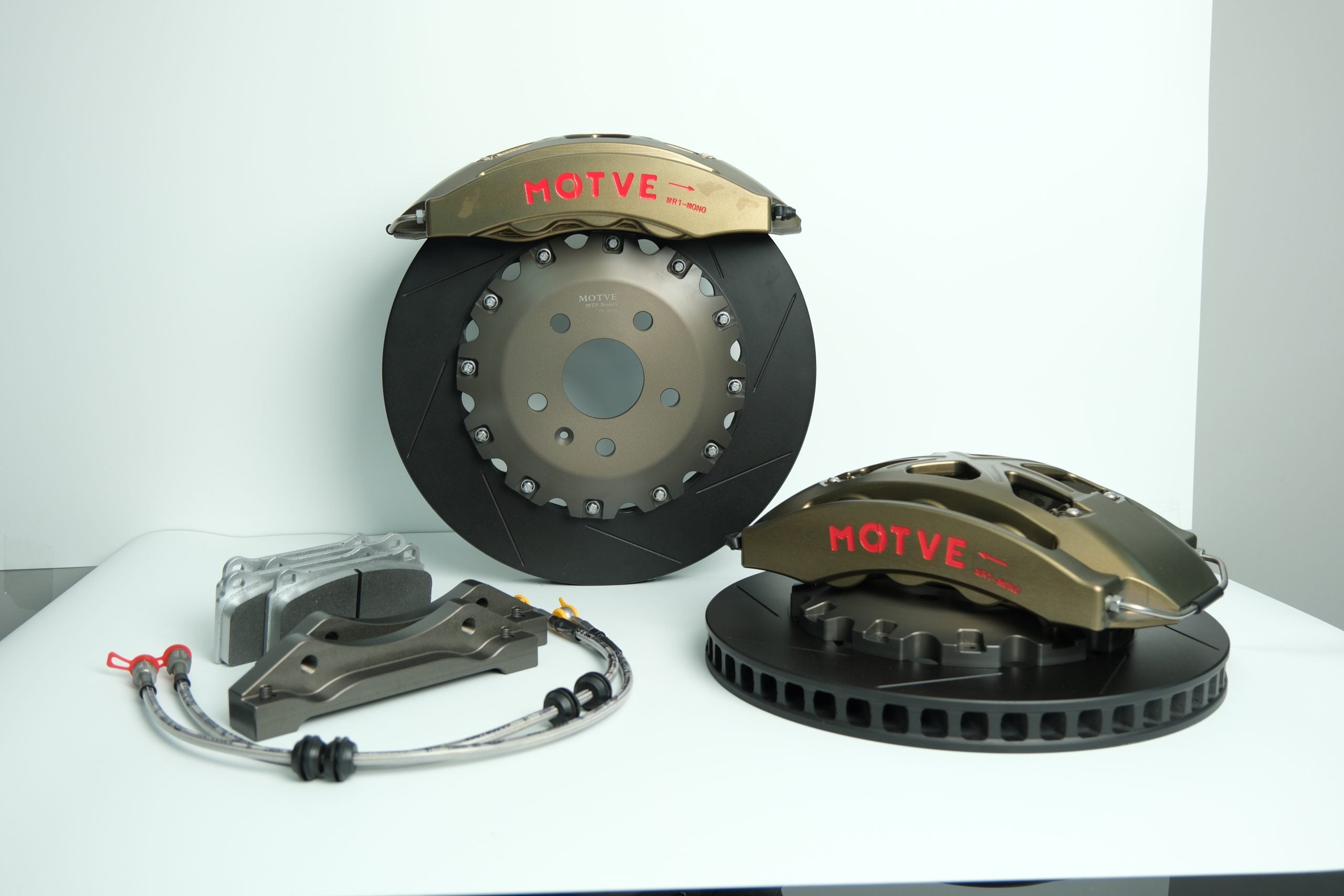

Discover the Motve MR1, a top-notch Racing 6 pistons caliper car brake system, meticulously crafted for racing vehicles to deliver unparalleled stopping power. Its lightweight yet robust design ensures maximal efficiency, minimizing brake fade and maximizing performance under intense conditions.

Key Features and Benefits:

  • Superior Stopping Power: Tailored for racing vehicles to ensure reliable and powerful braking.
  • Lightweight and Durable: Optimal design for reduced weight and enhanced durability.
  • Six-Piston Caliper System: Offers consistent brake pressure and improved modulation for better control.
  • Versatile Compatibility: Works seamlessly with a variety of brake pads and rotors.
  • Easy Installation: Designed for straightforward and hassle-free setup.
  • Essential for Race Car Drivers: A critical upgrade for those seeking top-tier, reliable braking performance.

Technical Specifications:

  • Piston Diameter: 2φ27mm, 2φ31.8mm, 2*φ34mm
  • Piston Area: 50cm²
  • Brake Disc Diameter: φ355mm, φ378mm, φ390mm
  • Brake Disc Thickness: 32mm, 34mm
  • Caliper Weight: 4.45kg
  • Fuel Inlet Thread Specification: M10*1
  • Mounting Hole Center Distance: 210mm
  • Mounting Hole Offset: 42mm
  • Mounting Hole Diameter: 12mm

Brake Pad Specifications:

  • Brake Pad Model: 9665
  • Brake Pad Thickness: 25mm
  • Friction Block Area: 81.6cm²
  • Brake Pad Material: Low-Metallic (M-Series)

Brake Disc Specifications:

  • Brake Disc Diameter: 355mm, 378mm, 390mm
  • Brake Disc Thickness: 32mm, 34mm
  • Marking Method: Arc, Line, Herringbone, Drilling, etc.
  • Surface Treatment: Phosphating and Metachromatic Coating

Caliper Technical Inspection Specifications:

  • Forging Strength of Caliper Housing: Tensile Strength ob≥320MPa
  • Housing Hardness: Hardness HV≥400
  • Low-pressure Seal Test: Passes with 0.4MPa air pressure, stable for 5s, pressure drop ≤ 100Pa
  • High-pressure Seal Test: Passes with 12MPa air pressure, stable for 5s, pressure drop ≤ 0.2MPa
  • Appearance: Painted, no collision damage, consistent gloss
  • Ultra-high Pressure Test: Passes with 30MPa oil pressure, no failure or bursting
  • Inspection Standard: Meets QC/T592 requirements for passenger car brake caliper assembly performance and test methods
