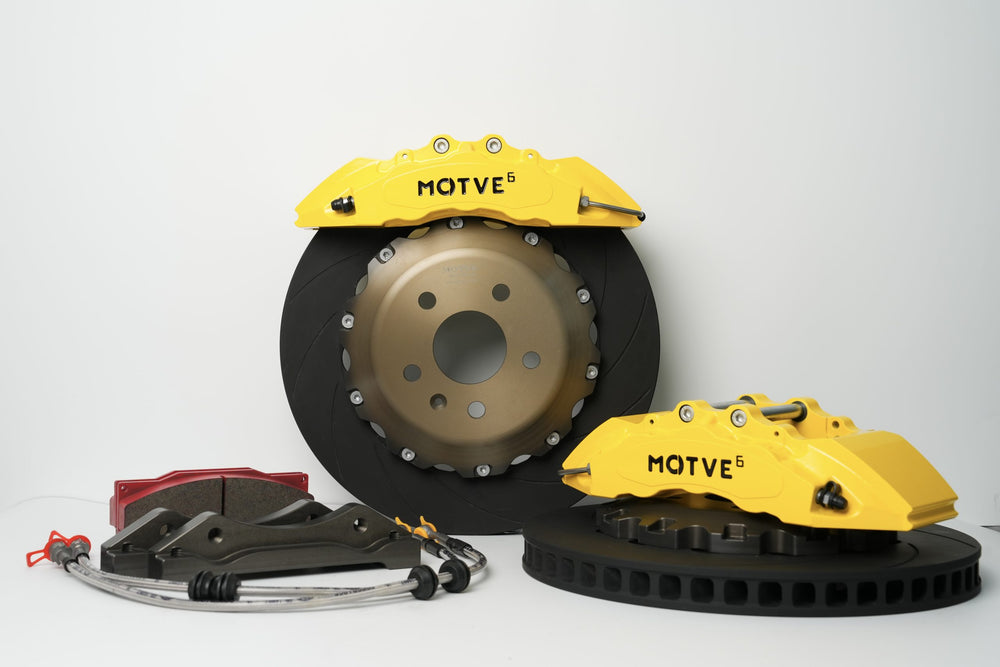

Motve MT6 high-performance six-pistons caliper system (Front Wheel)

The Motve MT6 is a high-performance six-piston caliper system designed for the front wheels of vehicles, aiming to provide superior braking capabilities. Below is a comprehensive review of its technical specifications:

Technical Specifications:

• Piston Diameter: φ27mm, φ31.8mm, φ38.1mm
  • The different piston diameters ensure even pressure distribution across the brake pads, enhancing the braking performance.
• Piston Area: 50cm²
  • A large piston area translates to a robust clamping force, vital for efficient braking.
• Brake Disc Diameter: φ355mm, φ362mm, φ380mm
  • The system is compatible with various disc diameters, offering flexibility in setup.
• Brake Disc Thickness (Max/Min): 32mm/30mm, 34mm for φ380
  • Adequate thickness supports optimal heat dissipation, minimizing the risk of brake fade.
• Caliper Weight: 3.5kg
  • A moderate weight ensures durability while maintaining performance efficiency.
• Thread Specification of Fuel Inlet: M10*1
• Mounting Hole Center Distance: 180 mm
• Mounting Hole Offset: 42 mm
• Mounting Hole Diameter: φ12.1mm
• Distance from Mounting Surface to Brake Disc Top: 63.5mm

Brake Pad Specifications:

• Brake Pad Model: MT6D55
• Brake Pad Thickness: 16.5mm
• Friction Surface Width: 54mm
• Friction Block Area: 68.4cm²
• Brake Pad Material: Low-Metallic (M-Series)
  • Offers a balance between performance, durability, and rotor wear reduction.

Brake Disc Specifications:

• Brake Disc Model: MTP235532D55.5
• Brake Disc Diameter: φ355mm
• Brake Disc Thickness: 32mm
• Friction Surface Width: 55.5mm
• Brake Disc Ventilation: 48 Ventilation Holes in Forward Arch Ribs
• Ventilation Core Process: Film-covered Sand
• Mounting Hole PCD: 12*215.9
• Mounting Hole Diameter: φ6.4mm
• Positioning Ring Diameter: φ195mm
• Petal Step: 0.2mm
• Brake Disc Marking Method: Arc, Line, Herringbone, Drilling, etc.
• Brake Disc Surface Treatment: Phosphating and Metachromatic Coating
• Brake Disc Material: G3500 High Carbon
• Heat Treatment: 580℃ Heat Treatment

Caliper Technical Inspection Specifications:

• Caliper Housing Forging Strength: Tensile Strength ob≥320MPa
• Housing Hardness: Hardness HV≥400
• Low-pressure Seal Test: Passed
• High-pressure Seal Test: Passed
• Appearance: The caliper has a painted appearance, free from collision damage, with consistent gloss.
• Ultra-high Pressure Test: Passed
• Inspection Standard: Meets the requirements of QC/T592.

The Motve MT6 showcases a high level of engineering precision and quality material selection, positioning itself as an excellent choice for automotive enthusiasts in search of advanced braking performance. With its rigorous testing and adherence to quality standards, it ensures reliable and efficient braking in demanding scenarios.
