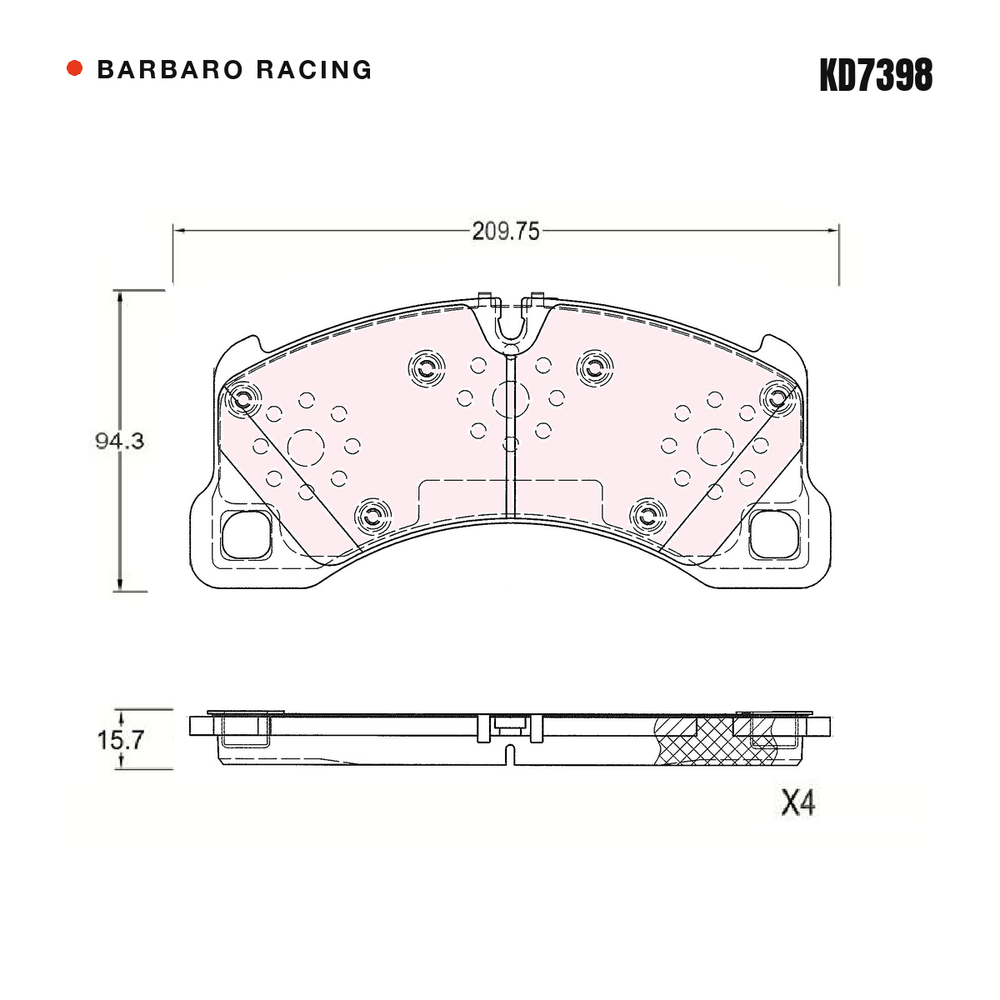

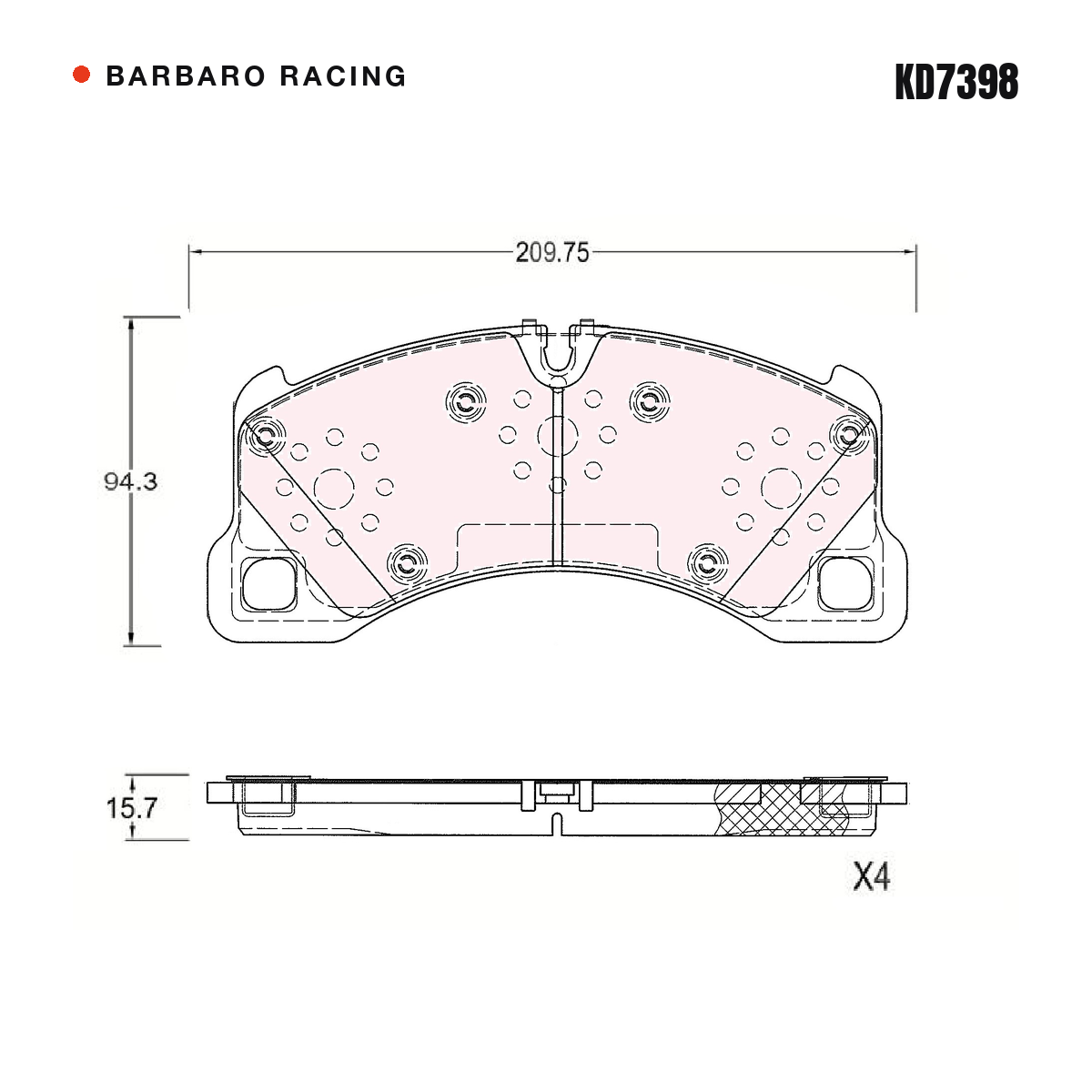

Barbaro Racing KD7398 brake pad shape drawing - 209.5 x 94.3 x 15.7 mm
Barbaro Racing KD7398 brake pad shape drawing - 209.5 x 94.3 x 15.7 mm

Barbaro Racing KD7398 CSI-01B Front Brake Pads - Brembo 19Z / 20Z, Porsche Panamera, Volkswagen Touareg 4MOTION
Barbaro Racing KD7398 CSI-01B front brake pads for Porsche Panamera / Macan GTS / Cayenne / Macan...
Proveedor: Barbaro Racing
Disponibilidad: Muchos en stock
Tipo de producto: Brake Pads
$494.00
$494.00
¡Por favor, date prisa! 0 queda en stock
Total parcial: $494.00
10 Los clientes están viendo este producto.

World Shipping

Worldwide Direct. Premium Parts at Your Doorstep.

🛡️

720 Days Warranty

720-Day Extended Warranty. Our Commitment, Your Peace of Mind.
👍

Trusted by 10000+ Happy Car Enthusiasts

The Enthusiast's Choice, Quality Speaks for Itself.
Barbaro Racing KD7398 brake pad shape drawing - 209.5 x 94.3 x 15.7 mm

Barbaro Racing KD7398 CSI-01B Front Brake Pads - Brembo 19Z / 20Z, Porsche Panamera, Volkswagen Touareg 4MOTION

Description
Description
x

Barbaro Racing KD7398 CSI-01B front brake pads for Porsche Panamera / Macan GTS / Cayenne / Macan turbo, Volkswagen Touareg 4MOTION and Brembo 19Z / 20Z calipers. CSI-01B is Barbaro's designated carbon-ceramic disc compound (−30–600°C, μ 0.40–0.43, SAE J2521 AA noise rating). Pad shape KD7398: 209.5 × 94.3 × 15.7 mm; interchanges with FMSI D1349, TRW GDB1774, Brembo P65017N.

Specifications

Barbaro part number KD7398
Compound CSI-01B
Barbaro factory code (SKU) D73985N6
Axle Front
Dimensions (L × H × T) 209.5 × 94.3 × 15.7 mm
Friction material height 70 mm
Supplied as One axle set
Pad features wide pad
Also available for KD7398 KD7398 C-02 Silent City, KD7398 C-01 Premium Street, KD7398 S-01 Street & Track, KD7398 RS-635 Race Endurance

Caliper fitment

Caliper brand Caliper Details
Brembo 19Z / 20Z wide pad, 70 mm friction face

Vehicle fitment

Make Model Chassis Years Engine / variant Notes
Porsche Cayenne 92A, 9PA, 955 2002– 3.0TDI diesel, Turbo 4.5, Turbo S, Turbo S 4.5, Turbo S 4.8, 4.5 (M48.50S), 4.5 (M48.50), 4.8 (M48.51), 3.0 Diesel, 3.0 S … Brembo calipers; only in conjunction with steel brake discs
Porsche Cayenne GTS 92A 2011–2017 3.6T, 4.8L
Porsche Cayenne S 92A 2010– 3.0T hybrid, 3.6T, 4.8L
Porsche Cayenne S E-Hybrid 92A 2014– 3.0T plug-in hybrid
Porsche Cayenne Turbo 92A, 9PA 2006–2017 4.8T
Porsche Cayenne Turbo S 92A, 9PA 2007–2017 4.8T
Porsche Macan GTS 95B 2015– 3.0T
Porsche Macan turbo 95B 2013– 3.6T
Porsche Panamera 970 2009– 3.0T, 4.8 4S, 4.8 GTS, 4.8 S, 4.8 Turbo, 4.8 (M48.20), 4.8 (M48.40), 4.8 (M48.70), 3.0 D, 3.0 S E-Hybrid … Brembo calipers; only in conjunction with steel brake discs
Porsche Panamera 4 970 2010–2016 3.0T, 3.6L
Porsche Panamera 4 E-Hybrid 971 2016– 2.9T plug-in hybrid
Porsche Panamera 4 E-Hybrid SportTurismo 971 2016– 2.9T plug-in hybrid
Porsche Panamera 4 SportTurismo 971 2016– 2.9T, 3.0T
Porsche Panamera 4S 970, 971 2010– 3.0T, 4.8L, 2.9T
Porsche Panamera 4S SportTurismo 971 2016– 2.9T
Porsche Panamera GTS 970, 971 2011– 4.8L, 4.0T
Porsche Panamera GTS SportTurismo 971 2018– 4.0T
Porsche Panamera S 970 2010–2016 3.0T, 4.8L
Porsche Panamera S E-Hybrid 970 2013– 3.0T plug-in hybrid
Porsche Panamera S Hybrid 970 2011–2013 3.0T hybrid
Porsche Panamera Turbo 970, 971 2010– 4.8T, 4.0T
Porsche Panamera Turbo S 970 2011– 4.8T
Porsche Panamera Turbo SportTurismo 971 2016– 4.0T
Volkswagen Touareg 7LA, 7L6, 7L7, 7P5 2004– 3.0 V6 TDI, 4.2 V8 FSI, 5.0 R50 TDI, 6.0 W12, 4.2 (BAR), 6.0 (BJN), 6.0 (CFRA), 3.0 diesel (BKS), 3.0 diesel (CATA), 5.0 diesel (CBWA) … Brembo calipers; only in conjunction with steel brake discs
Volkswagen Touareg 4MOTION 7P 2010– 3.0T, 3.0T hybrid, 4.2L

Fitment is compiled from the Barbaro Racing application catalogue and Barbaro factory data, together with the vehicle listings of the interchange part numbers below. Brake packages can differ within one model — please compare your current pads with the dimensions and drawing, or send us your VIN, before ordering.

Cross-reference / interchange numbers

FMSI D1349, D1577, D1557, D1349-8459, D1349-8641, D1349-8786, D1349-8851, D1349-8860, D1577-8790
TRW GDB1774, GDB1774DTE
Brembo P65017N, P65017, P65021
PAGID T1797, T1798, T1626, T2056
Ferodo FDB4064
Textar TX0839, 2455301, 2429516104, 2455303, 2455316104, 2500701, 2429501
Mintex MDB2987, MDB2833, MDB3075, MDB3157
Bosch 986494206, 0986494206, 0986TB3087
ATE 13046048522
Delphi LP2117
Bendix 573329B
Jurid 573329JC, 573329J
Hella Pagid 8DB355012641, 355014151, 355014141, 8DB355014141, 8DB355014151, 8DB355015801
Icer 181921
Remsa 134500
WVA 24553
OE Porsche 95535193963, 97035194802, 95535193961, 95535193962, 95535193970, 95835193900, 95835193970, 95535193960, 97035194901
OE VW Group (VAG) 7L0698151N, 7L0698151M, 7P0698151C, 7P0698151B, 7L0698151K, 7L0698151L

Interchange numbers identify the matching pad shape. Friction material, shims and wear-sensor hardware can differ between brands.

About the CSI-01B compound

CSI-01B · The designated compound

The designated formula for short-fiber molded coated carbon-ceramic discs — built on the CSI-01 lineage dating to 2019. High performance and low noise, finally unified. And cold bite that Ferrari and Lamborghini carbon-ceramic systems have always lacked.

  • Temperature window: −30–600°C
  • Friction: μ 0.40–0.43
  • Noise rating: SAE J2521 AA
  • Disc: Carbon-ceramic
  • SAE J2521 noise rating AA — on unmodified bare pads
  • Friction rises with temperature — exceeding 1.0 μ in fade tests
  • 2,000+ vehicles on road · fewer than 5 noise cases
  • Ideal for: Carbon-ceramic street cars, including Ferrari and Lamborghini CCB systems

CSI-01B full specifications on barbaro-racing.com

About Barbaro Racing

Barbaro Racing (野蛮人) is the performance brand of the CAC Racing Division — proprietary compounds developed entirely in-house. Development begins on the dynamometer and ends on the circuit: every friction formula is bench-tested to destruction before earning the right to carry the Barbaro name. All compounds are validated against GB5763-2018 national standards; Street Series compounds are asbestos-free.
