Supercharger Kit Installation: What to Expect

Quick Summary: A VT supercharger kit from AME Motorsport is a true bolt-on system — no cutting, welding, or permanent modification to the vehicle. A professional shop can complete the mechanical installation in a single working day using standard hand tools. This guide walks through what happens during installation: engine bay preparation, bracket mounting, supercharger positioning, belt routing, intercooler and oil line connections, and the ECU tuning that follows. This is not a DIY instruction manual — it is a clear overview so you know exactly what to expect when your vehicle goes into the shop.

Before the Install: Setting Expectations

The most common question from owners considering a VT supercharger kit is straightforward: what does the installation actually involve? The answer matters because it determines where you take the vehicle, how long it will be off the road, and what the total project cost looks like beyond the kit itself.

Here is the short version. The VT supercharger kit bolts onto the engine using existing factory mounting points. Nothing is cut. Nothing is welded. The factory cooling system is preserved. The factory accessory drive continues to function. A qualified workshop with experience in engine mechanical work can complete the hardware installation in approximately one working day. ECU tuning is performed after the hardware is in place and typically adds a few hours to the project.

The longer version — covering each stage of the process — follows below.

Stage 1: Engine Bay Preparation

Installation begins with the removal of components that occupy the space where the supercharger will sit. On most applications, this means:

• Factory intake assembly — the airbox, intake tube, and throttle body piping are removed to clear space for the supercharger intake path
• Engine covers — decorative plastic covers over the valve covers and intake manifold are removed
• Accessory clearance — depending on the application, certain accessories may need to be temporarily repositioned to provide working access

This stage is straightforward disassembly. Every component removed is either reinstalled in its original position later or replaced by a kit component. Nothing is discarded permanently.

The workshop will also inspect the engine bay for any pre-existing issues — oil leaks, worn belts, damaged hoses — that should be addressed before the supercharger goes on. Adding boost to an engine with existing maintenance issues compounds those issues. A clean, well-maintained engine is the foundation for a reliable supercharged setup.

Vehicle-Specific Considerations

Each VT kit is engineered for a specific engine and chassis combination. The Land Cruiser 200 4.0L kit has a different bracket layout and component routing than the Jeep Wrangler 3.0/3.6L kit or the Pajero V93 kit. The preparation steps are similar in concept but differ in the specific components that move or come out.

Stage 2: Mounting Bracket Installation

With the engine bay cleared, the CNC-machined mounting brackets are installed. These brackets are the structural foundation of the entire system — they position the supercharger at the correct height and angle relative to the engine, establish the belt drive geometry, and provide mounting points for the intercooler and ancillary components.

VT brackets are machined from billet aluminium to application-specific dimensions. They bolt to existing tapped holes in the engine block, cylinder head, or accessory mounting bosses. No new holes are drilled into the engine or chassis.

The bolting pattern varies by application:

Bracket installation is precise work. Torque specifications must be followed exactly, and alignment must be verified before proceeding. A misaligned bracket set will create belt tracking issues and may cause premature belt or bearing wear.

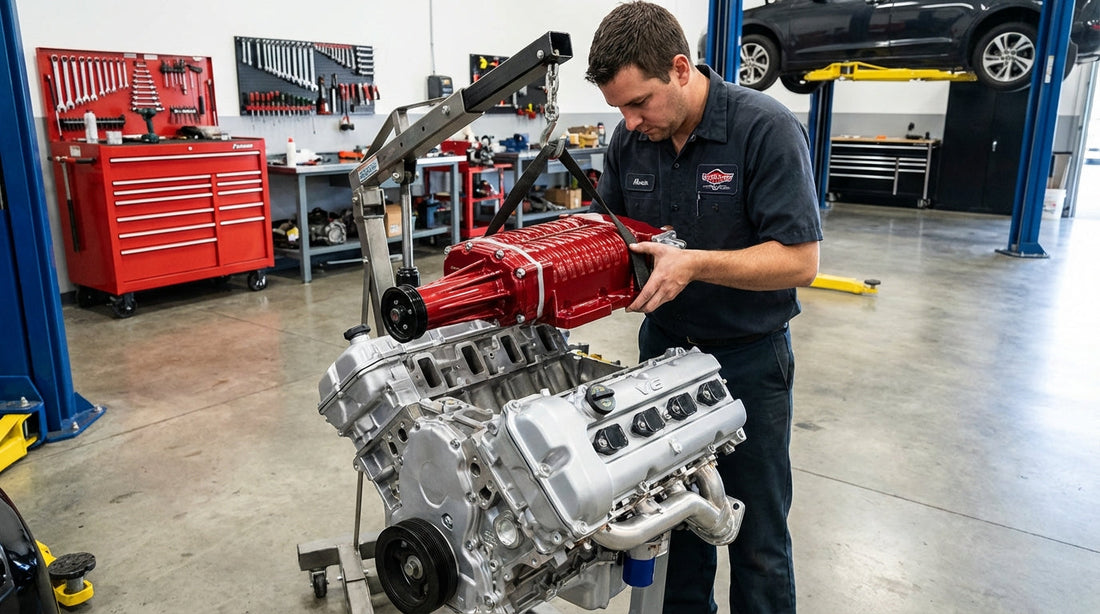

Stage 3: Supercharger Unit Installation

With brackets in place and alignment verified, the Eaton TVS supercharger unit is positioned and bolted down. The supercharger is a substantial component — the TVS1320 used on Toyota 4.0L applications weighs approximately 12kg — so this step typically requires two technicians or a support fixture.

The supercharger seats onto the brackets with precision-machined mating surfaces. Gaskets and O-rings (included in the kit) seal the interface between the supercharger outlet and the intercooler/intake path. The fasteners are torqued in sequence per the installation documentation.

Once the supercharger is mounted, the technician verifies:

• The unit sits level and square on the brackets
• The drive pulley aligns with the belt path
• There is adequate clearance between the supercharger body and surrounding components (hood, firewall, hoses, wiring)
• The intake and outlet ports are accessible for hose connections

Stage 4: Belt Drive Routing

The VT supercharger uses a dedicated belt drive separate from the factory accessory belt. This is a deliberate design choice: if the supercharger belt were to fail, the factory accessories — alternator, power steering, air conditioning — continue to operate normally. The vehicle remains fully driveable.

Belt routing involves:

• Installing the drive pulley on the crankshaft harmonic balancer (or dedicated drive point, depending on application)
• Routing the multi-rib belt around the supercharger inlet pulley, tensioner, and any idler pulleys
• Setting belt tension using the spring-loaded or adjustable tensioner included in the kit
• Verifying belt tracking — the belt must run true on all pulleys without edge contact or lateral movement

Correct belt tension is critical. Too loose, and the belt will slip under load, causing boost loss and belt glazing. Too tight, and bearing loads increase, reducing the service life of the tensioner and supercharger bearings. The VT kit includes a tensioner calibrated for the correct operating range.

Stage 5: Intercooler and Coolant Connections

The water-cooled intercooler circuit is a standalone system. It does not tie into the engine's factory cooling system, which means the factory radiator, thermostat, and coolant capacity are completely unaffected.

The intercooler installation involves:

• Mounting the intercooler core — positioned between the supercharger outlet and the intake manifold
• Installing the dedicated coolant reservoir — a separate tank for the intercooler circuit
• Mounting the electric water pump — this pump circulates intercooler coolant independently of engine RPM
• Running coolant lines — silicone hoses connect the intercooler core, reservoir, and pump in a closed loop
• Filling and bleeding the circuit — the system is filled with coolant and bled of air to ensure consistent circulation

The electric water pump is wired to operate whenever the engine is running, maintaining continuous coolant flow through the intercooler core. This ensures consistent intake charge cooling at all engine speeds — particularly important at low RPM when a mechanical pump would deliver minimal flow.

Stage 6: Oil System Connections

The supercharger's dedicated oil system is the final fluid circuit to install. Like the intercooler system, it is completely independent of the engine oil.

Installation covers:

• Mounting the oil reservoir — positioned in the engine bay with access for level checks and oil changes
• Installing the oil cooler — typically mounted where it receives adequate airflow
• Connecting oil feed and return lines — from the reservoir through the supercharger bearings and back
• Filling with the specified oil — the correct grade and quantity per the installation documentation

The dedicated oil system is a key reliability feature. Engine oil degrades with combustion byproducts, fuel dilution, and heat cycling. Supercharger bearings run cleaner and last longer on a dedicated oil supply that is not contaminated by these factors.

Stage 7: Final Assembly and Inspection

With all major components installed and fluid circuits connected, the final assembly stage covers:

• Reconnecting intake plumbing — silicone hoses connect the air filter to the supercharger inlet and the intercooler outlet to the throttle body
• Securing all wiring — the intercooler pump harness and any sensor connections are routed and secured away from heat sources and moving components
• Verifying all fasteners — every bolt is rechecked for correct torque
• Checking fluid levels — engine oil, engine coolant, intercooler coolant, and supercharger oil are verified at correct levels
• Visual inspection — the technician verifies clearances, hose routing, belt tracking, and overall installation quality

The engine is then started for the first time with the supercharger installed. At this stage, the factory ECU calibration is still in place. The engine will run, but it will not be calibrated for the additional airflow. The technician checks for:

• Oil leaks at all supercharger oil connections
• Coolant leaks at all intercooler connections
• Belt tracking and tension under load
• Unusual noises or vibrations

If everything checks out, the vehicle is ready for ECU tuning.

Stage 8: ECU Tuning (Required, Not Included)

ECU tuning is not included in the VT supercharger kit. This is a separate service that must be performed after the hardware installation is complete. The reasons for this separation are covered in detail in the kit contents guide, but the short version is: a tailored calibration matched to your specific fuel, altitude, and modifications produces better results than a generic tune.

After the supercharger hardware is installed, the ECU needs a revised calibration that adjusts:

• Fuel delivery maps — increased injector duty cycle to match higher airflow
• Ignition timing — adjusted for positive intake pressure and fuel octane
• Boost management — target boost levels and overboost protection
• Torque management — automatic transmission shift points and torque converter lockup (if applicable)

The tuning process may be performed via a flash tune (a pre-configured calibration uploaded to the ECU) or a custom dyno tune (calibration developed on a chassis dynamometer with the specific vehicle). Custom dyno tuning produces the most precise results and is recommended where available.

Factory Systems Preserved

A critical design principle of every VT kit is preservation of factory systems. After installation:

No factory system is removed, bypassed, or compromised. The supercharger system adds to the existing engine architecture without subtracting anything from it. This is what separates a properly engineered bolt-on kit from a fabrication project.

Installation Timeline

For owners planning their build, here is a realistic timeline:

These times assume a professional workshop with experience in engine mechanical work. First-time installers on a given platform may take longer. Workshops that have installed multiple VT kits on the same platform typically complete the job at the faster end of the range.

Choosing a Workshop

VT supercharger kits do not require specialist supercharger installation experience, but they do require competent mechanical skills. Look for:

• Engine mechanical experience — the workshop should be comfortable with intake manifold removal, accessory drive work, and fluid system installation
• Torque wrench discipline — every fastener has a specification; overtightening aluminium brackets or supercharger housings causes damage
• Attention to detail — hose routing, wiring management, and fluid level verification matter for long-term reliability
• Tuning access — ideally the same shop can perform or arrange ECU tuning, or has a working relationship with a tuner who can

AME Motorsport can assist with workshop recommendations for specific regions and applications. Browse the complete range of VT supercharger kits to find the application for your vehicle.

Frequently Asked Questions

Is this a DIY installation or does it require a professional shop?

The VT kit is a bolt-on system that does not require cutting, welding, or specialty tooling. Mechanically experienced owners with a well-equipped garage can perform the installation. However, AME Motorsport recommends professional installation for most owners — the precision required for bracket alignment, belt tensioning, and fluid system connections benefits from workshop experience. ECU tuning after installation requires specialist software and equipment that most DIY builders do not have.

Does the supercharger installation void the factory warranty?

Warranty implications depend on your jurisdiction, dealer, and the specific warranty claim. In many markets, the Magnuson-Moss Warranty Act (or equivalent legislation) prohibits blanket warranty denial based on aftermarket modifications. The dealer must demonstrate that the modification caused the specific failure being claimed. The VT kit preserves all factory systems without modification, which limits the scope of warranty-related concerns. Consult your dealer and local consumer protection laws for specifics.

What happens if the supercharger belt breaks?

The VT supercharger belt is a dedicated circuit separate from the factory accessory belt. If the supercharger belt fails, the alternator, power steering, and air conditioning continue to operate normally. The engine reverts to naturally aspirated operation — reduced power, but fully driveable. You can safely drive to a workshop for belt replacement.

Can the supercharger be removed later to return the vehicle to stock?

Yes. Every component bolts to existing mounting points with no permanent modification. The kit can be removed, the factory intake reassembled, and the ECU returned to the stock calibration. The vehicle will be indistinguishable from a factory-stock unit.

Do I need to upgrade my fuel system for the supercharger?

This depends on the application and tune. Most VT kits operate within the capacity of the factory fuel system at the standard boost level. Higher-output tunes or alternative fuels (E85) may require injector or fuel pump upgrades. Your tuner will advise on fuel system requirements based on your specific power targets and fuel choice.
