PFC Brakes: The Engineering Authority on Race-Winning Stopping Power
Quick Summary PFC Brakes (Performance Friction Corporation) represents the pinnacle of braking technology, utilizing proprietary CarbonMetallic® compounds and zero-drag caliper designs to dominate motorsports from IndyCar to the Nürburgring. Renowned for their "No Compromises" philosophy, their latest ZR caliper lineup and endurance compounds (like the 82 and 84) offer unrivaled modulation and thermal stability. In this guide, we at AME Motorsport break down their technical specifications to help you select the perfect setup for your track weapon.

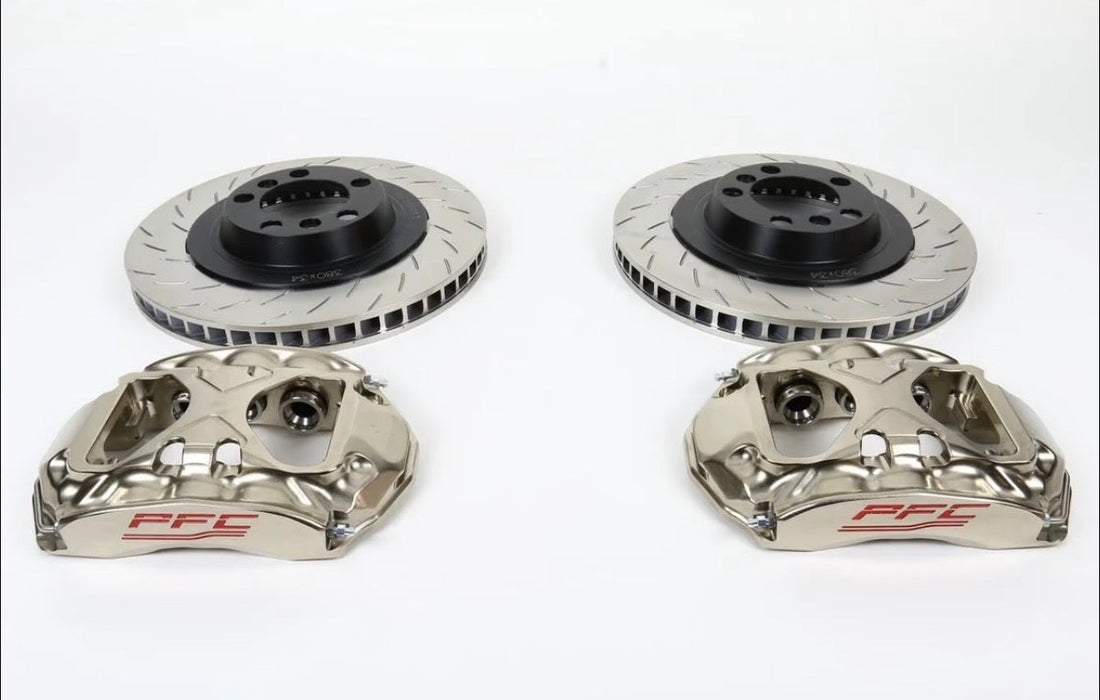

[Image Prompt: Close-up macro shot of a PFC ZR monobloc caliper in nickel plating, mounted on a slotted two-piece rotor, inside a carbon fiber wheel barrel of a GT3 race car, dramatic rim lighting highlighting the machined logo.]
The DNA of Deceleration: Why We Trust PFC at AME Motorsport
PFC Brakes is an American manufacturer of high-performance braking components that revolutionized the industry with the introduction of CarbonMetallic® pads in 1984.
At AME Motorsport, I have spent over two decades modifying vehicle dynamics, and if there is one truth I have learned in the workshop, it is that horsepower sells cars, but torque breaks records—specifically, braking torque. When we talk about PFC, we aren't just talking about a replacement part; we are talking about a championship lineage.
Braking is literally in their DNA. I still remember reading about how, in 1986, just two years after the birth of their CarbonMetallic® compound, PFC became the first manufacturer to produce an asbestos-free pad capable of stopping a 690,000-pound haul truck at 35 mph. That level of thermal capacity is insane. Fast forward to today, and since 2016, they have been the Official Brake Supplier of the NTT IndyCar Series.
When a client brings a GT3 or a time-attack build into our bay, I often steer them toward PFC not just for the stopping power, but for the consistency. In 1984, Geoff Bodine secured the first-ever Winston Cup win for Hendrick Motorsports at Martinsville using PFC pads. That heritage matters because it translates to data. Whether it is the V3 disc assembly launched in 2013 or their new ZR caliper range, everything they make is designed to eliminate drag and maximize pedal feel. When you install a set of PFCs from amemotorsport.com, you are bolting on technology that has won more championships than any other friction manufacturer.
[Image Prompt: Exploded view diagram of a ZR 92/98 caliper, 3D render style, showing the internal fluid crossover ports and piston arrangement, white background, technical engineering aesthetic.]
ZR 92/98 Series Calipers: The Lightweight Monobloc Solution
![]()
![]()
The ZR 92/98 Series is a 4-piston lightweight monobloc caliper designed specifically for small rotor applications (250-300mm), featuring internal fluid crossovers to eliminate external tubes.
In the world of unsprung weight reduction, the ZR 92/98 is a masterpiece. When I am setting up a lightweight open-wheel vehicle or a rear axle for a rally car, packaging is always a nightmare. The ZR 92/98 solves this by integrating central internal fluid crossover ports. This means no external crossover tubes that can be damaged by debris on a rally stage.
These calipers are engineered for rotor diameters between 250mm and 300mm, with thickness options ranging from 10mm to 20mm,. For a Formula 3 or Formula 4 type vehicle, this is the sweet spot. What I love about this design is the versatility in mounting. It features four bleed screws, which implies that a single part number can be used for both leading and trailing mounting positions. As a mechanic, this simplifies spare parts inventory massively.
The piston diameters in these units max out at 29.0mm/32.0mm. This staggered piston sizing helps combat pad taper wear—a common issue we see in single-piston setups. By graduating the piston sizes, PFC ensures that the pressure distribution across the pad face remains even as the rotor heats up. If you are building a lightweight track toy and need compact stopping power, check out our caliper options at amemotorsport.com.
[Image Prompt: Studio shot of the ZR 103/108 caliper, metallic finish, sitting on a workbench next to a micrometer and a bottle of high-temp brake fluid, focus on the bleed screws.]
ZR 103/108 Series: The Versatile Mid-Range Workhorse
The ZR 103/108 Series expands on the monobloc architecture of the 92/98 but accommodates larger rotors (up to 309mm) and thicker discs, making it ideal for heavier rear-axle applications.
Moving up the food chain, we find the ZR 103 and 108 series. In the shop, we often use these for the rear axles of Late Models or Short Track cars. They share the same brilliant internal fluid crossover architecture as their smaller siblings, but they open up fitment for rotors up to 309mm in diameter and, crucially, thicknesses of 20mm to 26mm.
That extra thickness is vital for thermal management. A thicker rotor acts as a larger heat sink. If you are running a heavier chassis or a track with heavy braking zones, that extra 6mm of rotor width compared to the 92/98 series can be the difference between finishing the race and boiling your fluid.
The mounting dimensions span from 120mm to 152mm. When we fabricate brackets at AME Motorsport, having known span dimensions allows us to CNC adapters with precision. The piston sizes here jump up to a max of 32.0mm/36.5mm. This increase in hydraulic area provides more clamping force for the same line pressure, allowing us to tune the brake bias effectively without overworking the master cylinder.
[Image Prompt: Action shot of a Rally car mid-air, dirt flying, showing the front wheel suspension and a ZR 105 caliper clamped onto a large glowing rotor.]
ZR 104/105 Series: Front Axle Dominance
The ZR 104/105 Series serves as the primary front-axle solution for TA2, Rally, and Late Models, designed to accommodate massive 355mm rotors and providing maximum clamping force.
When we are dealing with the front end of a TA2 car or a serious Rally build, we need stopping power that hits like a sledgehammer but modulates like a dimmer switch. The ZR 104/105 is built for this. It accepts rotors from 300mm all the way up to 355mm, with thicknesses up to 32mm.
A 32mm thick rotor is substantial. It allows for massive heat dissipation. The piston diameters in this series are significantly larger, maxing out at 41.0mm/44.0mm. In hydraulic terms, this is a game-changer. Larger pistons mean we can generate immense torque. However, you must match this with the correct master cylinder bore size; otherwise, you'll end up with a long, mushy pedal.
One specific feature I appreciate during installation is the mount dimension spans of 180mm to 210mm. This wide stance provides excellent caliper rigidity. Under heavy braking, calipers want to flex open (clam-shelling), which results in tapered pad wear and a soft pedal. The wide mounting points of the ZR 104/105 mitigate this flex, ensuring every psi of fluid pressure goes into the pads.
[Image Prompt: Artistic rendering of the "19 Compound" brake pad structure, microscopic view showing the friction material grain, blue and grey color palette to signify "cool" control.]
19 Compound: The Art of Effortless Control
The 19 Compound is a low-coefficient friction material designed specifically for open-wheel racers and the rear axles of GT cars, prioritizing modulation over raw bite.
Not every corner requires you to stand on the pedal. The 19 Compound is what I call a "finesse" pad. It is specially designed for lightweight race cars or open-wheelers. The friction curve is slightly rising but maintains a generally low coefficient.
Why would you want low friction? Balance. In a front-engine GT car, the rear end gets light under braking. If you have a high-bite pad in the rear, you'll lock up instantly, engaging ABS or spinning the car. The 19 Compound provides effortless control, making it the perfect option for rear axles in front-wheel-drive or front-engine GT platforms.
We have also seen this compound used successfully in 24-hour endurance races without a pad change on the rear axle. That longevity is money in the bank for race teams. If you are fighting rear brake lockup, swapping to the 19 Compound available through amemotorsport.com is often a smarter fix than messing with proportioning valves.
[Image Prompt: A split-screen comparison image. Left side: "40 Compound" with a smooth polished rotor surface. Right side: "41 Compound" with a more aggressive rotor surface. Text overlay: "ABS vs Non-ABS".]
40 Compound: High Bite for the ABS Era
The 40 Compound is a high-torque friction material optimized for vehicles with ABS, offering consistent performance and a fine micro-polished disc finish.
Modern race cars like GT3 and TCR machines rely heavily on ABS systems. The 40 Compound has gained favor in Super GT 300 and Trans Am because it plays nice with these electronics. It offers high bite and torque but features excellent release characteristics.
"Release" is how quickly the pad lets go of the rotor when you lift off the pedal. A poor release drags the rotor, creating heat and upsetting the car's balance mid-corner. The 40 Compound releases cleanly. It creates a stiff pedal feel with low effort but remains compatible with ABS applications.
It also leaves a fine micro-polished finish on the disc. This reduced abrasion extends rotor life—a critical factor when running expensive floating rotors. If you are running a modern track car with electronics, the 40 is your go-to.
[Image Prompt: A raw, gritty texture background representing the "41 Compound", overlaid with a graph line showing a rising friction curve as temperature increases.]
41 Compound: The Severe Duty Specialist
The 41 Compound is the aggressive sibling to the 40, designed for non-ABS applications where the driver needs maximum torque and friction rise with temperature.
If the 40 is refined, the 41 is a brute. It is preferred in NASCAR and non-ABS applications. This compound has a friction rise with temperature, meaning the hotter it gets, the harder it stops (up to a point).
However, this comes with a warning: This compound demands the most from the vehicle setup. Because the initial bite and torque are so high, your suspension bushings, caliper mounts, and tires must be up to the task. If you put this on a softly sprung street car, you'll nosedive aggressively.
Like the 40, it offers excellent modulation, but it is designed for the most severe applications where a driver without ABS needs to feel the limit of adhesion through a stiff pedal. For pure race chassis builds at amemotorsport.com, we often recommend the 41 for the front axle.
[Image Prompt: A racing chart showing a "flat torque curve", horizontal line, steady and unwavering, symbolizing the 81 compound's consistency.]
81 Compound: The Endurance Stabilizer
The 81 Compound is the newest rear endurance pad from PFC, featuring a low friction coefficient (0.2–0.3) and a very flat torque curve for maximum stability.
Endurance racing is about survival and consistency. The 81 Compound is engineered with a low mu (friction coefficient) in the 0.2 to 0.3 range. This might sound low, but for a rear pad, it is perfect.
The torque curve is very flat, and it has low initial bite. This is crucial when working with modern ABS systems. High initial bite in the rear can confuse ABS computers, causing erratic intervention. The 81 provides a stable, controllable rear end and minimizes lockups.
We recommend this for Porsche applications and front-engine GTs where preserving the rear tires and rotors over a 12 or 24-hour stint is the priority. It is gentle on discs and has an extremely low wear rate.
[Image Prompt: Photo of a Porsche GT3 R crossing the finish line at the Nürburgring 24 Hours at night, glowing brake rotors, celebrating the 82 compound's victory.]
82 Compound: The Nürburgring Winner
The 82 Compound is the new standard for endurance braking, featuring a degressive torque curve that works seamlessly with ABS to prevent lockups while providing high initial bite.
This compound is a celebrity in our world. It took a win at the 2023 24 Hours of Nürburgring immediately upon release. Unlike the 81, the 82 has a very high initial bite, making it suitable for medium-distance sprint applications as well.
However, it is a "degressive" pad. This means that after that initial bite, the friction level trails off slightly as the stop progresses. This is brilliant for trail braking. As you turn into the corner and bleed off the brakes, the pad helps you by naturally reducing torque, preventing wheel lockup as the downforce sheds speed.
It offers a stiff pedal, low pedal effort, and excellent release. If you are building a serious endurance car, the 82 is likely the best front-axle pad on the market right now.
[Image Prompt: Technical schematic of a mid-engine sports car layout, highlighting the rear axle braking system, representing the 84 compound's application.]
84 Compound: Optimized for Mid-Engine Balance
The 84 Compound is a rear-specific endurance formulation designed to complement the 82 front pad, specifically tuned for the weight distribution of mid-engine GT cars.
Mid-engine cars (like Ferraris, McLarens, or the Corvette C8) have more static weight over the rear axle than front-engine cars. This means the rear brakes can do more work. The 84 Compound takes the winning characteristics of the 82—specifically the degressive curve—and applies it to the rear.
Like the 82, it won at the Nürburgring in 2023. It minimizes lockups and works in harmony with ABS. The wear rate is extremely low, and it is gentle on discs. At AME Motorsport, we typically pair an 82 Front / 84 Rear setup for our mid-engine GT customers to achieve perfect hydraulic balance.
[Image Prompt: Graph plotting "Friction vs Temperature" for various PFC compounds (19, 40, 41, 81, 82, 84). The lines intersect, showing different characteristics.]
Understanding the Friction Curves: Data Analysis
To choose the right pad, you must understand how friction changes with heat.
Looking at the data from PFC's dyno testing, the behavior of these compounds is distinct:
- Compound 41 (Red Line): Shows a significant rise in friction as temperature increases from 150°C to 450°C. This confirms its status as a severe-duty pad that likes heat.
- Compound 81 (Beige Line): Starts low and stays low/flat. It actually drops slightly as temps go over 400°C, ensuring the rear never over-brakes the car.
- Compound 82 (Black Line): Starts with high friction at lower temps (good bite) and gently tapers off (degressive). This confirms the "driver-friendly" modulation description.
Understanding these curves allows us at AME Motorsport to tailor the brake feel to the driver's preference.
[Image Prompt: A modern BMW M4 GT4 race car in the pits, mechanics working on the wheel area, showcasing specific fitment applications.]
Specific Applications: BMW and Porsche
PFC hasn't just built universal parts; they have engineered direct solutions for the world's most popular track platforms.
We see a lot of BMW Cup cars. PFC has released specific compounds for the BMW 235i/240i Cup (Part numbers ending in .453/463). Furthermore, for the G-M Series BMWs, they have the 2478 front pad and 1469 rear pad.
For the Porsche 992 Cup, PFC offers a disc retrofit assembly (380.34.0052.xx). This is a massive upgrade over stock, utilizing their V3 retention ring technology which removes the need for nuts and bolts in the rotor hat, allowing the disc to expand and contract freely without warping.
[Image Prompt: A Toyota GR Yaris drifting on a tarmac rally stage, highlighting the front brakes, representing the new JDM support.]
JDM Support: GR Yaris & Civic TCR
The JDM market is not ignored. PFC has developed specific pads for the Honda Civic FL5 TCR and the Toyota GR Yaris.
The FL5 TCR is a beast, and PFC supplies the 7519 front pad for it. For the street/track enthusiasts driving the Toyota GR Yaris or GR Corolla, PFC now offers the 5000 (front) and 5001 (rear) pad shapes, along with a 356mm front disc assembly.
This is huge for the tuning community. The GR Yaris is hard on brakes due to its active diffs and weight. Upgrading to a PFC friction package transforms that car's endurance capabilities.
[Image Prompt: A mechanic's hands using a torque wrench on a caliper bolt, with a "Do Not Disturb" sign on the rotor face, symbolizing the bedding process.]
Bedding-In: The Critical Final Step
The best caliper in the world is useless if you glaze your pads in the first lap. Proper bedding (burnishing) is mandatory.
When we install these parts at amemotorsport.com, we follow a strict procedure. You need to transfer a layer of friction material onto the rotor face.
- Get the brakes up to temperature gradually.
- Perform several stops from medium speed to low speed (never to a complete stop).
- Allow the system to cool completely.
With PFC's CarbonMetallic® compounds, this transfer layer is vital. It protects the disc and stabilizes the friction coefficient.
[Image Prompt: A clean, well-lit workshop table with a full PFC brake kit laid out: Calipers, pads, rotors, and fluid, ready for installation.]
Choosing Your Setup: The Verdict
Selecting the right combination of caliper and pad is about honesty regarding your application.
If you are sprinting a Formula car, the ZR 92/98 with 19 compound is your answer. If you are endurance racing a Porsche GT3, the ZR 105 front with 82 compound and 84 rear is the championship-winning ticket.
Don't guess. Look at the data, look at the rotor fitment, and choose the setup that matches your tire compound and race duration.
Comparison: PFC ZR Caliper Specs
| Series | Piston Layout | Rotor Dia. Range | Rotor Thickness | Max Piston Dia. | Application Focus |
|---|---|---|---|---|---|
| ZR 92/98 | 4 Piston Monobloc | 250 - 300mm | 10 / 20mm | 29.0 / 32.0mm | F3/F4, Rear Axle Rally, Lightweight |
| ZR 103/108 | 4 Piston Monobloc | 250 - 309mm | 20 / 26mm | 32.0 / 36.5mm | Rear Axle Late Model, Rally, Short Track |
| ZR 104/105 | 4 Piston Monobloc | 300 - 355mm | 26 / 32mm | 41.0 / 44.0mm | Front Axle TA2, Rally, Late Model |
Comparison: New PFC Compounds Matrix
| Compound | Characteristics | ABS Compatible? | Torque Curve | Ideal Use Case |
|---|---|---|---|---|
| 19 | Low Friction, Effortless Control | Yes | Slight Rising | Rear Axle GT, Open Wheel |
| 40 | High Bite, Consistent | Yes | Consistent | GT3, TCR, Rally (ABS cars) |
| 41 | High Bite, Severe Duty | No (Preferred) | Rising w/ Temp | NASCAR, Trans Am (Non-ABS) |
| 81 | Low Mu, Very Flat | Yes | Flat | Rear Endurance, Porsche |
| 82 | High Bite, Degressive | Yes | Degressive | Front Endurance, Sprint |
| 84 | Degressive, Stable | Yes | Degressive | Rear Mid-Engine GT |
Technical Breakdown: How to Select the Correct ZR Caliper
When configuring a brake system at AME Motorsport, we don't just guess; we calculate. Here is the step-by-step logic we use to select the right ZR series caliper for a custom build.
-
Determine Rotor Constraints: Measure your wheel barrel clearance.
- If you are limited to a 13-inch or 14-inch wheel (Formula/Rally), you are likely capped at a 300mm rotor. This locks you into the ZR 92/98 or ZR 103/108.
- If you have 18-inch wheels, you can accommodate the 355mm rotors required for the ZR 104/105.
-
Analyze Thermal Load (Thickness):
- Are you running a sprint race (20 mins) or an endurance race (4+ hours)?
- Sprint cars can get away with the 10-20mm thickness of the ZR 92/98 to save weight.
- Endurance or heavy cars need the 32mm thickness capacity of the ZR 104/105 to manage heat soak.
-
Calculate Hydraulic Ratio:
- You must match the caliper piston volume to your master cylinder.
- ZR 92/98 (Small Pistons - 32mm max): Requires a smaller master cylinder bore to generate adequate line pressure.
- ZR 104/105 (Large Pistons - 44mm max): Moves a lot of fluid. Requires a larger master cylinder to prevent excessive pedal travel.
-
Check Mounting Span:
- Check your upright/knuckle.
- If you have narrow mounting tabs (120-152mm), use the ZR 92/103 series.
- If you have wide mounting tabs (180-210mm), use the ZR 104/105 series.
-
Select the Pad Shape:
- Ensure the pad shape matches the annulus (sweep) of your rotor.
- ZR 92 uses pad shape 7998 (35mm sweep).
- ZR 105 uses pad shape 7994 (47mm sweep). Matching sweep is critical to prevent creating a "lip" on the pad or rotor.
FAQ: People Also Ask
Q: What is the difference between PFC 40 and 41 compounds? A: The main difference is ABS compatibility and heat reaction. The 40 Compound is designed for ABS systems and offers a consistent torque curve with a polished release. The 41 Compound is more aggressive, featuring friction that rises with temperature, and is preferred for non-ABS cars that need maximum bite.
Q: Can I use PFC 82 compound for sprint racing? A: Yes. While the 82 Compound is marketed as an endurance pad (winning the Nürburgring 24h), it has very high initial bite, making it excellent for medium-distance sprint applications where you want a stiff pedal and ABS compatibility.
Q: What rotors fit the new PFC ZR 105 caliper? A: The ZR 105 caliper fits rotors with a diameter range of 300mm to 355mm and a thickness of 26mm to 32mm. It is designed for front-axle applications on TA2 and Rally cars.
Q: Why does PFC use internal fluid crossovers in the ZR series? A: Internal fluid crossovers eliminate the external tubes found on traditional calipers. This reduces the risk of damage from track debris (rocks, rubber) and improves the stiffness and reliability of the caliper monobloc structure.
Q: Do PFC pads work with factory ABS systems? A: Yes, specifically the new 40, 81, 82, and 84 compounds. These are engineered with "degressive" or "flat" torque curves that prevent the spike in friction that typically confuses ABS computers, ensuring smooth intervention and shorter stopping distances.
Conclusion: Stop at Nothing
Braking is not just about safety; it is the single most effective way to decrease lap times. Being able to brake 20 meters later than your competition, with the confidence that the pedal won't fade, gives you overtaking opportunities that horsepower simply cannot buy.
PFC Brakes has proven, from the 35mph haul truck stop in 1986 to the podiums of IndyCar today, that they are the leaders in friction science. Whether you need the lightweight precision of the ZR 92 caliper or the endurance longevity of the 82 Compound, upgrading your system is the best investment you can make in your race program.
