Quick Summary:

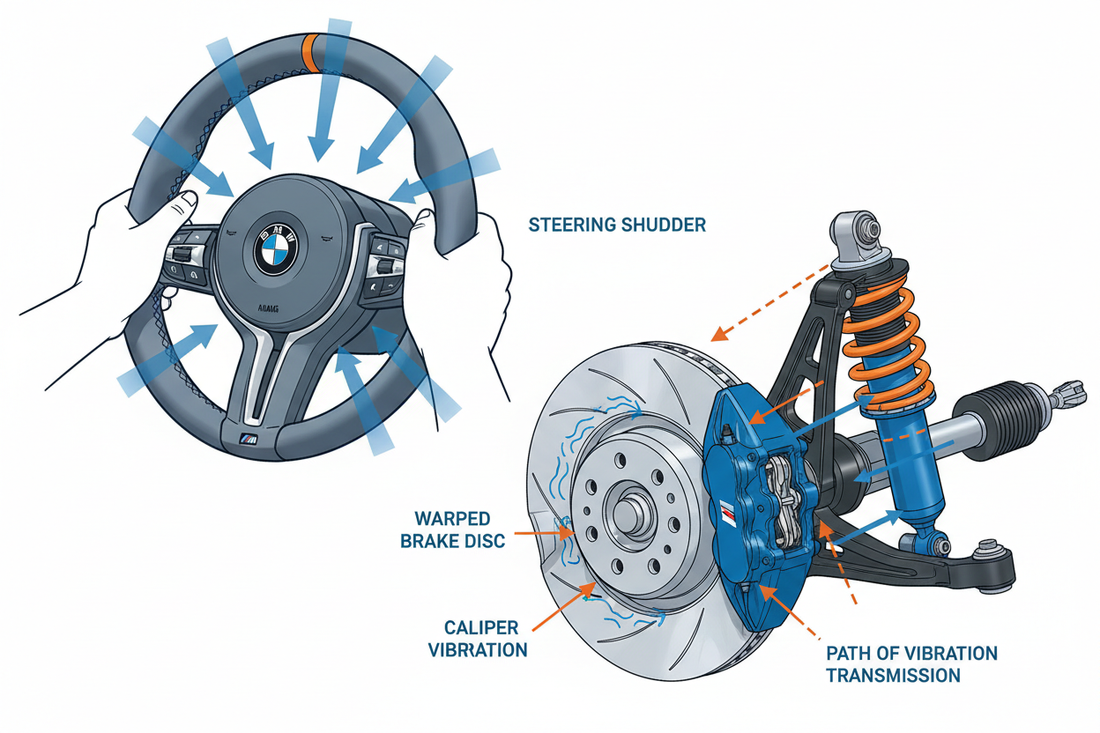

If your steering wheel shakes when you brake, the most likely culprit is Disc Thickness Variation (DTV), often misdiagnosed as "warped rotors." This occurs when the brake rotor wears unevenly or develops high spots due to excessive lateral runout or improper pad bedding. Other causes include worn lower control arm bushings, seized caliper slide pins, or uneven wheel nut torque. Ignoring this vibration can lead to increased stopping distances and catastrophic suspension failure.

1. The "Warped Rotor" Myth: What's Really Happening Under Your Guard?

I've been in this game for over 20 years, turning wrenches on everything from daily driven Toyota Hiluxes to track-weaponized Nissan GTRs here at AME Motorsport. If I had a dollar for every time a customer walked into our workshop and said, "Mate, my rotors are warped," I'd have retired to the Gold Coast by now. It is, without a doubt, the single most persistent myth in automotive history.

Here is the cold, hard engineering truth: Cast iron brake rotors do not warp.

To physically warp a chunk of cast iron that thick, you would need to heat it to near its melting point (over 1,200°C) and then mechanically twist it. Unless you are driving a Formula 1 car into a wall, your street brakes are not achieving the thermal load required to turn cast iron into a Pringle chip.

So, why does it feel like the rotor is warped? Why does the steering wheel jerk out of your hands like a jackhammer every time you touch the pedal at 80 km/h?

The answer lies in a phenomenon we call Disc Thickness Variation (DTV). This isn't a geometric distortion of the disc's shape; it is a variation in the physical thickness of the metal at different points around the circumference. We are talking about microscopic differences—often as little as 12 to 15 microns (that's thinner than a human hair)—that can cause violent steering oscillation.

When I explain this to customers, I often compare it to a vinyl record. If a record is warped, the needle moves up and down. If a record has a scratch or a lump of glue on it, the needle gets kicked sideways. DTV is the lump. As the thicker part of the rotor passes through the brake caliper, it forces the pistons apart. This pushes hydraulic fluid back up the lines, through the ABS modulator, and into the master cylinder, kicking the brake pedal back against your foot.

Simultaneously, that sudden increase in clamping force creates a spike in braking torque. This torque spike grabs the wheel, yanks the suspension backward, and twists the steering knuckle. Because your steering rack is mechanically connected to that knuckle, that torque spike travels right up the column and shakes your hands.

In this exhaustive guide, I am going to take you through the physics, the metallurgy, and the suspension dynamics that cause this. We aren't just going to swap parts; we are going to diagnose the root cause so you never have to deal with it again.

2. The Physics of Disc Thickness Variation (DTV) and Runout

Direct Answer:
Disc Thickness Variation (DTV) is the condition where the brake rotor's two friction surfaces are no longer parallel to each other. This is primarily caused by Lateral Runout (LRO)—a side-to-side wobble of the rotor as it spins. This wobble causes the high spot of the rotor to rub against the brake pad even when the brakes are off, wearing that spot down and creating a thin section.

The Mechanism of the "Wobble"

To understand DTV, we first have to understand Lateral Runout (LRO). Imagine mounting a laser pointer to your fender and aiming it at the spinning rotor surface. If the dot moves in and out as the wheel turns, you have runout.

Most vehicle manufacturers dictate that installed runout must be less than 0.05mm (0.002 inches). That is an incredibly tight tolerance. If your rotor has runout exceeding this—let's say 0.10mm—it is essentially wobbling as it drives down the highway.

Here is the sequence of failure I see constantly:

1. The Runout: You install a new rotor, but there is a tiny piece of rust on the hub (we'll get to that later). The rotor sits slightly crooked. It now has 0.10mm of runout.
2. The Kiss: You drive down the highway without touching the brakes. The rotor is spinning at 1,000 RPM. Because it is wobbling, the "high" side of the rotor brushes against the retracted brake pad once per revolution. This is called "off-brake drag."
3. The Wear: Over 5,000 km, that gentle "kiss" scrubs away a tiny amount of iron at that specific high point. Conversely, on the opposite side (180 degrees away), the rotor might not touch the pad at all, or it might collect a transfer layer of pad material.
4. The Result: You now have a rotor that is physically thinner at one spot (where it was rubbing) and thicker at another.

Now, when you apply the brakes, the pads squeeze the rotor. When the thick part passes through, the caliper has to open up. When the thin part passes through, the caliper clamps down. This oscillation happens 15 times per second at highway speeds. Your suspension cannot dampen that frequency, and the energy is transferred directly to the steering rack.

The Hydraulic Feedback Loop

One thing I always tell my apprentices is to pay attention to the hydraulics. The brake system is a closed loop. If the pistons are forced apart by a thick section of the rotor, that fluid has to go somewhere. It doesn't compress. It shoots back up the line.

This is why pedal pulsation often accompanies steering shake. If you have steering shake without pedal pulsation, we might be looking at a suspension issue or a pure tire balance issue. But if the pedal is dancing under your foot, you have a hydraulic pressure variation caused by DTV. It is physics, plain and simple.

3. The Number One Culprit: Hub Surface Hygiene

Direct Answer:
The most common cause of induced lateral runout is debris or rust on the wheel hub. A particle as small as 0.05mm trapped between the hub face and the rotor hat can be magnified to over 0.15mm of runout at the rotor's edge due to the geometric radius effect. Cleaning the hub to bare metal is mandatory for vibration-free braking.

The Radius Multiplier Effect

I cannot stress this enough: cleanliness is next to godliness in brake systems. When we install brake kits, we spend more time prepping the hub than we do bolting on the calipers.

Think of the geometry. The hub face is usually about 140mm in diameter. The rotor might be 380mm. If you trap a piece of rust or a grain of sand near the center of that hub, the angle of deflection it creates gets amplified the further out you go. By the time you get to the outer edge of the rotor—where the caliper actually bites—that 0.05mm speck of rust has become 0.15mm or 0.20mm of wobble.

I've seen mechanics (and I use that term loosely) slap brand new, high-dollar rotors onto a crusty, rusted hub. Two weeks later, the customer is back, screaming that the new rotors are "warped." They aren't warped. They are crooked. And because they were spinning crooked, they wore unevenly. Now they are ruined.

The AME Cleaning Protocol

At AME Motorsport, we don't just wipe it with a rag. We use a Hub Resurfacing Tool (like a 3M Roloc disc or a wire brush cup on a drill) to strip the hub flange down to shiny, bright steel.

We also inspect the spigot (the center ring). If there is rust buildup on the spigot, the rotor won't seat fully flush.

To Anti-Seize or Not to Anti-Seize?

This is a controversial topic in the workshop. Some guys love slathering copper grease (anti-seize) on the hub to prevent it from rusting again. I advise caution. If you apply a thick, gloopy layer of paste, you are introducing a compressible layer between the hub and rotor. As the heat cycles and the grease migrates, you can lose clamping force or create unevenness.

My rule: Clean it to bare metal. If you live in a coastal area (like us here in Brisbane) and are worried about corrosion, apply a translucent, microscopic film of anti-seize and wipe it off until you can barely see it. Or better yet, use a dry-film lubricant spray. Do NOT leave globs of grease.

4. Torque Dynamics: The "Ugga Dugga" Problem

Direct Answer:
Uneven lug nut torque is a primary cause of rotor distortion. Overtightening lug nuts or tightening them in a circular pattern rather than a star pattern warps the rotor hat (the center section). This physical distortion creates immediate runout. Lug nuts must be torqued to manufacturer specifications (typically 100–140 Nm) using a calibrated torque wrench, not an impact gun.

The Impact Gun Epidemic

We've all heard it—the ZZZ-ZUT-ZUT-ZUT of a pneumatic impact gun hammering wheel nuts on at a tyre shop. That sound is the sound of your brake rotors dying.

When a mechanic hammers one nut down to 250 Nm and the next one to 150 Nm, two things happen:

1. Hat Distortion: The rotor hat is clamped unevenly against the hub. Cast iron is strong, but it is also somewhat brittle and elastic under high tension. The hat flexes, pulling the friction ring out of alignment.
2. Stud Stretch: You can actually stretch the wheel studs beyond their yield point.

I once worked on a Ford Mustang that had a persistent shake. The owner had replaced rotors three times. I checked the lug nuts; they were torqued to over 220 Nm (spec is roughly 200 Nm for big trucks, but around 135 Nm for a Mustang). The excessive torque had physically deformed the hub flange itself.

The Star Pattern is Non-Negotiable

You must tighten in a criss-cross sequence.

• 5-Lug: 1-3-5-2-4.
• 6-Lug: 1-4-2-5-3-6.

This ensures the clamping load is distributed evenly across the face of the bell. If you tighten in a circle (1-2-3-4-5), you "pinch" the rotor on one side, which almost guarantees runout.

A Note on Aftermarket Wheels

At AME Motorsport, we sell a lot of aftermarket wheels. Aftermarket wheels often have different seat types (conical vs. ball seat). Using the wrong lug nut or an aftermarket wheel that doesn't have a hub-centric ring can also cause the wheel to mount slightly off-center. This imbalance shakes the steering wheel at speed (usually 90-110 km/h), which is often confused with brake shudder.

Diagnostic Tip: If the steering shakes without braking at 100 km/h, it's wheel balance/centering. If it shakes only when braking, it's the rotors/DTV.

5. Metallurgy 101: Cementite and "Hot Spots"

Direct Answer:
Cementite (Iron Carbide) forms when cast iron rotors are heated beyond 650°C. These "hot spots" are harder than the surrounding metal and wear at a slower rate, creating permanent high spots on the rotor surface. This metallurgical change cannot be removed by machining; the rotor must be replaced. High-carbon rotors are more resistant to this thermal shock.

When Iron Turns to Glass

We see this a lot with customers who take their street cars to track days or drive aggressively through the mountains behind Brisbane. Standard grey cast iron consists of a matrix of iron and graphite flakes. It's relatively soft and damps vibration well.

However, if you panic brake or ride the brakes down a mountain, localized temperatures on the rotor face can spike massively. When the temperature hits that critical 650°C–700°C range, the carbon in the iron precipitates out and forms Cementite.

Cementite is incredibly hard. It's basically a ceramic. The problem is that your brake pads are designed to rub against soft cast iron, not hard cementite. As you continue to drive, the pads wear away the soft iron around the cementite spot, but the cementite spot itself remains high.

The "Blue Leopard" Effect

If you look at a rotor with this issue, you will see distinct blue or black patches that look like leopard spots. These are the cementite deposits. You can feel them if you run your fingernail across the face (wait for it to cool down, obviously!).

Once cementite forms, the rotor is trash. You can try to machine it (resurface it), but the hard spot usually extends deep into the metal. The lathe tool will bounce over the hard spot, leaving a high point even after machining. Within 500 km, the shake will be back.

The Solution: High Carbon Metallurgy

This is why we push High Carbon Rotors so heavily at AME Motorsport. By increasing the carbon content and adding molybdenum during the casting process, we improve the thermal conductivity of the rotor. This allows the heat to dissipate faster, keeping the peak temperature below the threshold where cementite forms. It also improves noise damping.

Table 1: Standard vs. High Carbon Rotor Specs

6. Suspension Dynamics: The Amplifier Effect

Direct Answer:
Worn Lower Control Arm (LCA) bushings are a massive amplifier of brake judder. When bushings are soft or torn, they cannot hold the wheel in position during the immense drag loads of braking. This allows the wheel to oscillate backward and forward (dynamic toe change), turning a minor rotor vibration into a violent steering wheel shake.

The "Dynamic Toe" Problem

This is the hidden killer. I've had customers replace rotors three times and still have a shake. They think they are buying bad parts. They aren't. Their suspension is shot.

Think about the forces at play. When you slam on the brakes in a 1,800 kg car, the tire grips the road and tries to stop. The chassis wants to keep going. The component connecting the wheel to the chassis is the Lower Control Arm.

The LCA bushing (usually a big rubber donut) has to absorb that longitudinal load. If that rubber is old, cracked, or oil-soaked, it becomes too compliant. When the brake grabs, the arm shifts backward.

• The Flutter: If you have even a tiny amount of DTV (rotor thickness variation), the braking force fluctuates. Grip-slip-grip-slip.
• The Reaction: The worn bushing acts like a spring. It compresses when the brake grabs (thick part of rotor) and rebounds when the brake releases (thin part).
• The Result: The entire wheel assembly flutters fore and aft. Because of the steering geometry, this fore-aft movement changes the Toe Angle (the direction the wheels point). Your wheels are literally steering themselves left and right 20 times a second.

Diagnosing Bushing Failure

How do you know if it's the bushings and not the brakes?

• The Low-Speed Thud: Tap the brakes at 5 km/h. Do you hear a clunk or feel the wheel shift? That's the bushing taking up the slack.
• Visual Check: Get under the car with a pry bar. Lever the control arm. If you see deep cracks in the rubber or if the fluid (some are hydro-bushings) has leaked out, it's toast.
• The "Smooth Hard Brake": sometimes, a light brake application shakes the wheel, but a hard panic stop feels smooth. This is because the hard stop fully compresses the bushing against its metal stop, eliminating the oscillation. DTV usually shakes worse the harder you press.

At AME, we often recommend upgrading to polyurethane bushings or fresh OEM hydro-bushings when doing a major brake upgrade. There is no point putting big brakes on a floppy suspension.

7. The Silent Killer: Seized Caliper Slide Pins

Direct Answer:
Seized caliper slide pins prevent floating calipers from centering themselves over the rotor. This forces the inner brake pad to drag constantly against the rotor, creating excessive heat and rapid, uneven wear. This localized heating generates DTV and steering shake. Pins must be lubricated with silicone or ceramic grease, never petroleum-based grease.

The Mechanics of the Float

Most cars on the road use "floating" calipers. The caliper bracket is bolted to the car, but the caliper body "floats" on two steel pins. When you press the brake, the piston pushes the inner pad. As the inner pad hits the rotor, the reaction force pulls the caliper body across the pins, squeezing the outer pad against the rotor.

If those pins are stuck:

1. Inner Pad Drag: The caliper can't slide. The piston pushes the inner pad into the rotor, but the outer pad does nothing.
2. Overheating: The inner pad never fully releases. It drags 100% of the time. This side of the rotor gets incredibly hot—often exceeding that 650°C cementite limit we discussed.
3. DTV Creation: The constant drag wears a groove or a low spot into the inner face of the rotor.

The Grease Mistake

This is a rookie error I see constantly. Someone uses standard bearing grease or copper anti-seize on the slide pins.

• The Problem: Petroleum-based grease attacks the rubber dust boots that protect the pins. The rubber swells up, allowing water in and locking the pin tight.
• The Fix: You MUST use Silicone Dielectric Grease or dedicated Synthetic Brake Lubricant (like Permatex Ceramic). These do not degrade rubber and can withstand the 1000°F temps near the rotor.

8. Pad Chemistry and "Pad Imprinting"

Direct Answer:
Steering shake can be caused by friction material transfer, where brake pad material bonds unevenly to the rotor surface. This creates "sticky" spots with a higher friction coefficient than the bare metal. This is common when a driver brings hot brakes to a complete stop and holds the pedal down, baking an outline of the pad onto the rotor.

Adherent vs. Abrasive Friction

There are two ways brakes stop your car:

1. Abrasive Friction: The pad acts like sandpaper, physically grinding the rotor surface to create drag. This is common with Semi-Metallic pads (often used in Europe and on track).
2. Adherent Friction: The pad deposits a thin layer of its own material onto the rotor face. The braking force comes from the breaking and reforming of molecular bonds between the pad and this transfer layer. This is common with Ceramic pads and modern organic compounds.

The "Pad Deposit" Shudder

Adherent friction is great—it's smooth and quiet. But, it relies on an even transfer layer.

If you get the brakes scorching hot (say, exiting a freeway off-ramp aggressively) and then sit at the traffic light with your foot hard on the brake, the heat clamps the pad to the stationary rotor.

The resin in the pad material melts and bonds to the rotor surface in the exact shape of the pad.

Now, you have a "pad imprint." Every time that spot passes the caliper, the friction coefficient jumps (it gets "stickier"). The rotor isn't warped; it isn't even thinner (DTV). But the grip varies. This creates the exact same torque fluctuation and steering shake as a warped rotor.

The Cure: The Bedding-In Procedure

Whenever you install new pads from AME, or if you suspect pad deposits, you need to perform a Bedding-In Cycle to scrub the rotor clean and lay down a fresh, even layer.

The AME Bedding Protocol:

1. Find a safe, open stretch of road.
2. Perform 5-8 moderate stops from 60 km/h to 10 km/h. Do not come to a complete stop.
3. Perform 5 aggressive stops from 100 km/h to 20 km/h. You want to get the brakes hot (you might smell them). DO NOT STOP.
4. Drive for 10-15 minutes at highway speeds without touching the brakes to let them cool down evenly.

This process burns off uneven deposits and establishes a uniform transfer layer.

9. The AME Motorsport Solution: Why We Use 2-Piece Rotors

At AME Motorsport, we specialize in high-performance upgrades. We know that standard 1-piece rotors have limitations, especially for heavy, powerful cars like the modern BMW M-series or Ford Mustang.

That is why our brake kits often feature 2-Piece Floating Rotors.

The Thermal Expansion Problem

In a standard 1-piece rotor, the friction ring (where the pads bite) gets super hot, while the "hat" (which bolts to the hub) stays relatively cool.

• The Conflict: The hot ring wants to expand (get bigger), but the cool hat constrains it.
• The Result: The rotor "cones" or dishes. It physically bends under heat, creating temporary runout.

The Floating Solution

A 2-piece rotor separates the ring (iron) from the hat (aluminum). They are connected by "floating bobbins" or pins.

• Radial Expansion: As the ring heats up, the bobbins allow it to expand outward radially independent of the hat. It doesn't fight the hat; it just grows.
• No Coning: Because it can expand freely, the rotor surface stays perfectly flat and parallel, even at 800°C.
• Bonus: The aluminum hat is lighter, reducing unsprung weight and improving suspension response.

If you are chasing persistent brake shake on a performance car, switching to a 2-piece floating rotor setup is often the "silver bullet" that solves it permanently.

10. Step-by-Step Technical Diagnostic Guide

Do not just throw parts at the car. Use this flowchart to find the actual problem.

Phase 1: The Road Test

Identify the Speed: drive at 60 km/h, 80 km/h, and 110 km/h. Does the shake happen only when braking?

• Yes: It's the brakes or suspension.
• No (shakes while cruising): It's wheel balance or a bent rim. Go get your wheels balanced first.

Identify the Axle:

• Steering Wheel Shake: Front Brakes.
• Seat/Butt Vibration: Rear Brakes.

Check the Pedal: Is the pedal pulsating?

• Yes: DTV (Rotor thickness issue).
• No: Likely Suspension Bushings (LCA) or simple pad deposits.

Phase 2: The Physical Inspection

Tools Needed: Jack, stands, torque wrench, wire brush, dial indicator (optional but recommended).

Lift and Shake: Lift the front end. Grab the tire at 3 and 9 o'clock. Shake it.

• Play? Tie rods or steering rack.

Grab at 12 and 6 o'clock. Shake it.

• Play? Wheel bearing or ball joint.

Bushing Check: Use a pry bar to lever the lower control arm. Look for cracks. If the rubber is detached from the metal sleeve, replace the control arms.

Rotor Inspection:

• Look for "Blue Leopard Spots" (Cementite). If present, replace rotors.
• Look for a "lip" on the edge. If the lip is huge, the rotor is undersized.

Phase 3: The Measurement (Pro Level)

1. Remove the Caliper: Hang it by a wire (don't let it hang by the hose!).
2. Clean the Hub: Remove the rotor. Blast the hub with a wire wheel until it shines.
3. Install Rotor with Spacers: Put the rotor back on. Put washers on the studs and tighten the lug nuts to clamp the rotor flat (without the wheel).
4. Dial Indicator: Set up your dial gauge on the strut. Place the needle on the rotor face. Spin the rotor.
5. Reading: If the needle moves more than 0.05mm, you have runout.
6. Clocking: Try taking the rotor off, rotating it one stud hole clockwise, and re-measuring. Sometimes "clocking" the rotor cancels out hub runout.

11. Cost Breakdown: What Are You In For?

This is the question every customer asks. Prices below are estimates based on the Australian market (AUD) and AME Motorsport standards.

Table 2: Repair & Upgrade Cost Estimates (AUD)

Note: Always replace pads when replacing rotors. Mating old pads to new rotors creates immediate groove issues.

12. Conclusion: Stop the Shake, Save Your Suspension

Steering wheel shake isn't just an annoyance; it's a distress signal. It's your car telling you that the precise dance between friction, hydraulics, and suspension geometry has fallen out of step.

If you ignore it, you aren't just putting up with a wobble. You are hammering your tie rod ends, destroying your ball joints, and reducing your tire's contact patch with the road during emergency stops. That is a safety risk you don't want to take.

Key Takeaways:

• Rotors don't warp; they wear unevenly (DTV).
• Clean your hubs like your life depends on it.
• Torque your wheels to spec, in a star pattern.
• Check your bushings—they amplify the vibration.
• Use the right parts. High Carbon metallurgy prevents the chemical changes that ruin rotors.

If you are ready to banish brake shake forever and upgrade to a system that handles the heat, check out our range of suspension systems and brake kits at AME Motorsport. We engineer our parts to withstand the punishment of the track and the rigors of the street.

Drive safe, brake late, and keep it smooth.

13. Frequently Asked Questions (FAQ)

Q: Can I just machine my rotors to fix the shake?
A: Yes, but it's often a temporary fix. Machining removes metal, making the rotor thinner and less able to absorb heat. This means it will likely overheat and develop DTV again sooner. If the rotors have "hot spots" (cementite), machining won't work at all—you need new rotors.

Q: Why does my steering shake at high speed but NOT when I brake?
A: That is almost certainly a wheel balance or bent rim issue. If the vibration is constant at speed (e.g., 100-110 km/h) and doesn't change when you tap the brake, go see a tyre shop, not a mechanic.

Q: Is it dangerous to drive with a shaking steering wheel?
A: Yes. Severe vibration reduces the tire's traction limit because the contact patch is fluctuating. It also causes rapid wear to your steering rack, tie rods, and suspension bushings, which could lead to component failure.

Q: Do ceramic pads prevent warping?
A: Ceramic pads are less abrasive and generate less heat transfer to the caliper fluid, but they operate by depositing a transfer layer. If you don't bed them in properly, that layer can be uneven, causing shake. However, they are generally gentler on rotors than semi-metallic pads.

Q: How tight should I tighten my wheel nuts?
A: Check your owner's manual! For most passenger cars, it's between 100 Nm and 140 Nm. SUVs might be up to 160 Nm. Never use an impact gun without a torque stick. Overtightening is a leading cause of rotor runout.

Q: Why do my brakes shake only when going downhill?
A: This indicates thermal instability. Your rotors are getting hot enough to distort or engage "hot spots" (cementite) that aren't felt when cold. You likely need High Carbon rotors that can handle the thermal load of mountain driving.

---
