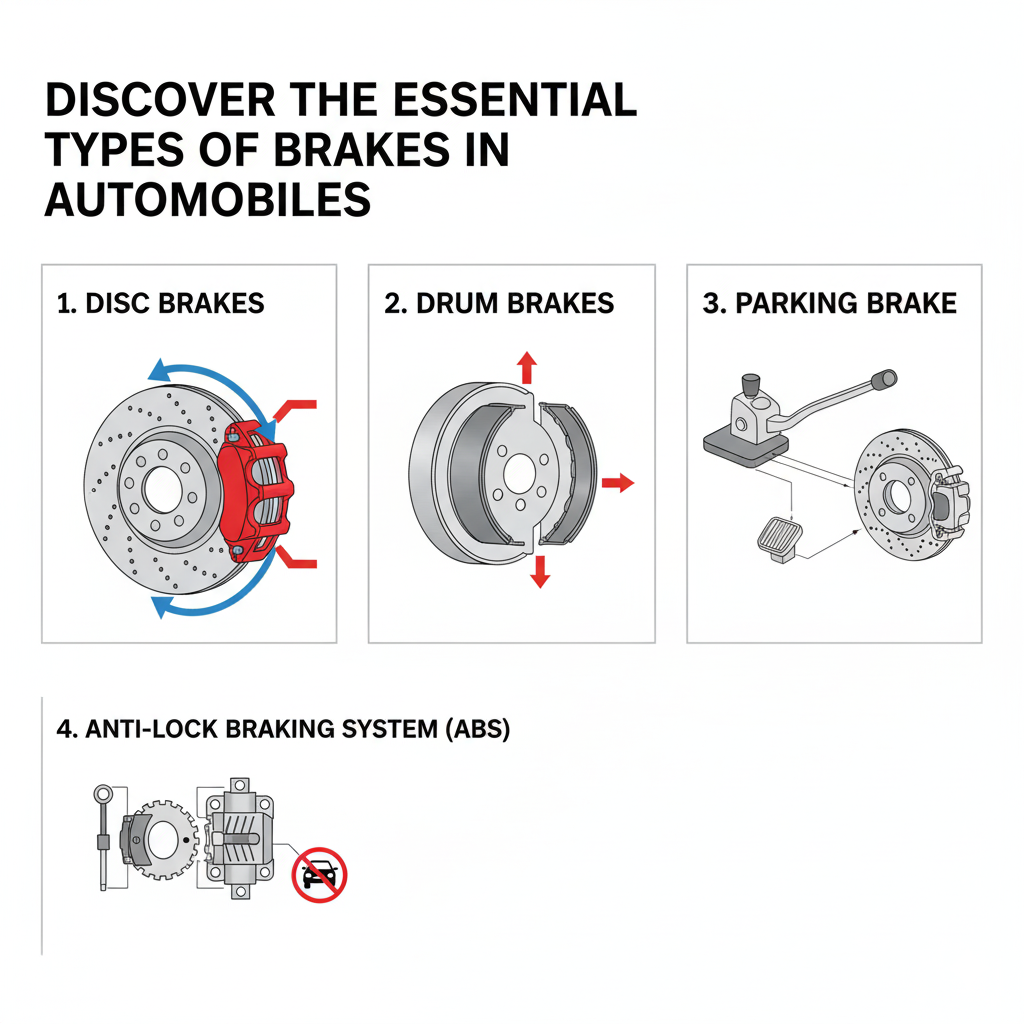

An automobile’s braking system is critical for safety, control, and ride quality. Over decades, engineers have developed multiple brake designs, each optimized for different vehicle classes, performance needs, and cost constraints. This article explores the primary types of brakes used in modern and classic cars, explaining their components, advantages, disadvantages, and typical applications.

1. Disc Brakes

Disc brakes dominate contemporary passenger vehicles, performance cars, and heavy trucks.

Components and Operation

• Rotor (Disc): A flat, ventilated steel or composite disc that spins with the wheel.

• Caliper: A housing containing one or more hydraulic pistons.

• Brake Pads: Friction material bonded to backing plates.

When hydraulic pressure pushes the caliper pistons, the pads clamp onto the rotor, converting kinetic energy into heat. Ventilated rotors—with internal vanes—enhance cooling under heavy use.

Advantages

• Efficient heat dissipation reduces brake fade.

• Consistent stopping power across a wide temperature range.

• Easy pad inspection and replacement.

Disadvantages

• Higher manufacturing cost than drum brakes.

• Exposed rotors can accumulate dust and require occasional cleaning.

Applications

• Standard on front wheels of almost all modern cars; four-wheel disc brakes are common on SUVs and performance models.

2. Drum Brakes

Once universal, drum brakes remain on many rear axles of economy cars and light trucks.

Components and Operation

• Drum: A cylindrical housing bolted to the wheel hub.

• Wheel Cylinder: Hydraulic pistons push the brake shoes outward.

• Brake Shoes: Curved friction material pressed against the drum’s interior.

• Return Springs: Retract shoes after braking.

Friction between shoes and drum slows the wheel. The self-energizing effect draws the leading shoe into the drum, boosting force with minimal pedal effort.

Advantages

• Lower production cost.

• Effective parking brake integration.

Disadvantages

• Poorer heat dissipation leads to fade under repeated heavy braking.

• More complex parts layout makes servicing more labor-intensive.

Applications

• Rear brakes on budget-oriented and small vehicles; parking brakes often integrated into a drum-in-hat design even on disc-equipped rears.

3. Antilock Braking System (ABS)

ABS is not a brake type per se but a safety enhancement layered onto disc or drum brakes.

Function

• Wheel speed sensors detect impending lockup under hard braking.

• An electronic control unit modulates hydraulic pressure via fast-acting valves, “pulsing” brakes hundreds of times per second.

Benefits

• Maintains directional control during emergency stops.

• Reduces skid risk on slippery roads.

All modern passenger vehicles are equipped with ABS, often integrated with traction control and stability control systems.

4. Regenerative Braking (Electric and Hybrid Vehicles)

Regenerative braking recaptures kinetic energy during deceleration, converting it back into electrical energy.

Mechanism

• The electric motor switches to generator mode when slowing.

• Generated electricity charges the vehicle’s battery pack.

• Friction brakes supplement deceleration at low speeds or during hard stops.

Advantages

• Extends driving range by reusing energy.

• Reduces wear on mechanical brake components.

Limitations

• Less effective at rapid stops requiring full braking force.

Found on all modern electric and hybrid vehicles, regenerative braking improves efficiency and environmental impact.

5. Carbon-Ceramic Brakes

High-performance and supercar segments employ carbon-ceramic composite rotors.

Features

• Rotors made of carbon fiber reinforced with ceramic matrix.

• Paired with high-performance brake pads.

Advantages

• Exceptional heat tolerance with minimal fade.

• Significantly reduced unsprung weight improves handling.

• Long service life under track conditions.

Disadvantages

• Very high cost.

• Can be noisy and less effective when cold.

Typically factory-fitted on exotic sports cars and track-focused models.

6. Electro-Hydraulic and Electronic Parking Brakes

Recent innovations automate parking brake application.

Types

• Electro-Hydraulic Brake Actuation: Uses a small motor to press hydraulic lines, simulating pedal force.

• Electronic Drum-in-Hat Parking Brakes: Built into rear calipers, operated by electric actuator.

Benefits

• Simplifies cabin layout—no traditional handbrake lever.

• Automatic hill-hold functionality.

Common on mid-range and premium vehicles, these systems blend convenience with safety.

Comparison Overview

Conclusion

Automotive braking technology spans from simple drum systems to advanced carbon-ceramic and regenerative designs. Disc and drum remain the foundational types, while ABS and electronic aids enhance safety and control. Understanding these systems empowers drivers to appreciate vehicle performance, choose appropriate replacements, and maintain their braking systems for optimal reliability.
