Brakes are a vital safety system that helps control speed and stop a vehicle. Understanding where the brakes are and how they function can empower drivers to identify issues early and maintain their cars more effectively. This article explains the locations, components, and typical configurations of brakes in modern automobiles.

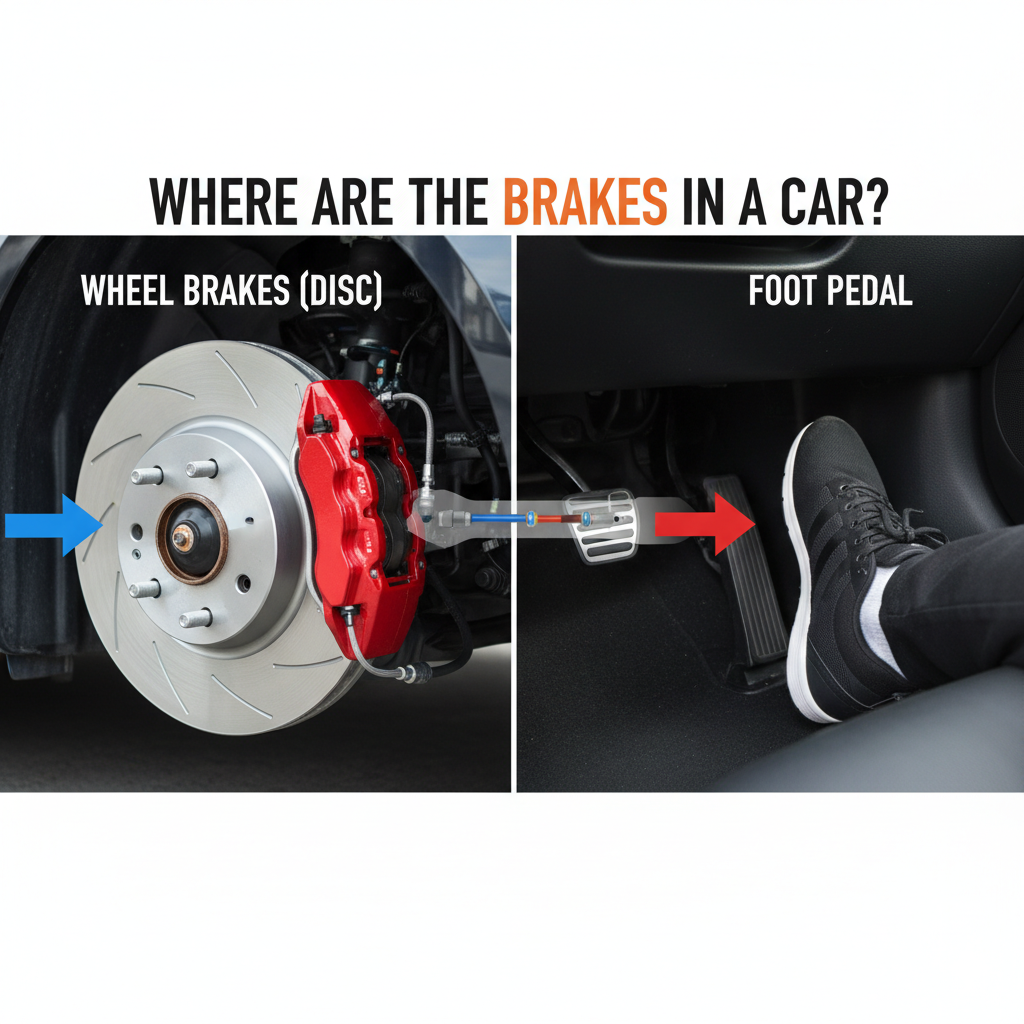

1. Primary Brake Locations on Most Cars

• Front brakes: On nearly every modern car, the front brakes carry the majority of stopping power. The front wheels typically house disc brakes, though some models use a mix of disc and drum designs in certain generations or trims.

• Rear brakes: The rear wheels also have braking components, which can be either disc brakes or drum brakes depending on the vehicle. In many modern cars, the rear brakes are discs, but budget-friendly or older vehicles may still use drums in the rear.

• Overall system: Brakes are integrated through a common hydraulic system that applies pressure to each wheel’s braking components via a master cylinder and brake lines.

Cited understanding: The general arrangement described here reflects standard practice across a broad range of passenger vehicles, where front-brake torque is greater due to vehicle dynamics.

2. Core Brake Components by Location

• Front axle components:

  • Brake rotors (discs) and calipers in disc-brake systems.

  • Pad friction material pressed against the rotor to generate stopping force.

• Rear axle components:

  • Disc brakes with rotors and calipers, or drum brakes with brake shoes inside a drum, depending on design.

• Central control components:

  • Master cylinder, brake fluid lines, ABS modulator, and sometimes electronic parking brakes that coordinate braking at the network level.

These components work together to translate pedal input into clamping force, converting kinetic energy into heat through friction, and dissipating that heat to slow the vehicle.

3. Brake Types You Might See Under The Hood

• Disc brakes: The most common configuration on modern cars, featuring rotors, calipers, and pads. They offer strong performance and predictable fade resistance.

• Drum brakes: Less common on modern passenger cars, typically found on rear axles of some economical or older models. They use shoes inside a drum and can be cost-effective for simple parking brake integration.

• ABS-enabled brakes: An enhancement that modulates hydraulic pressure to prevent wheel lock during hard braking, regardless of disc or drum configuration.

The choice of brake type usually reflects a balance of cost, performance, and vehicle class.

4. How Brakes Work Together in a System

• Hydraulic principles: Pressing the brake pedal pushes brake fluid in the master cylinder, transmitting force through brake lines to each wheel.

• Friction and heat: Pads (or shoes) rub against rotors (or drums) to slow the car, turning kinetic energy into heat energy that must be dissipated.

• Safety features: ABS, electronic brake-force distribution (EBD), and brake assist enhance stopping performance and stability in diverse conditions.

• Maintenance considerations: Regular checks of pad/shoe wear, rotor/drum condition, brake fluid moisture, and system pressure help maintain braking reliability.

5. Why Knowing Brake Locations Matters

• Diagnostics: Early signs of brake wear or hydraulic issues can be traced to the front or rear assemblies, helping target maintenance.

• Maintenance specificity: Knowing which wheels have discs or drums guides inspection intervals and part replacement.

• Safe driving: Understanding braking layout supports safer driving habits, including proper following distances and response to brake fade or vibrations.

6. Quick Troubleshooting Tips

• Listen for squeal or grinding noises, which can indicate worn pads or damaged rotors.

• Feel for a soft or spongy brake pedal, which may signal air in the hydraulic system or low brake fluid.

• Observe brake warning lights and inspect brake fluid level regularly.

• If a brake pedal sinks toward the floor, seek professional service promptly, as this may indicate a hydraulic leak or master-cylinder issue.

Conclusion

Brakes are typically located at each wheel, with front brakes taking a larger share of stopping power on most vehicles. A modern braking system combines disc or drum configurations, hydraulic actuation, and safety technologies like ABS to provide reliable, controllable stopping performance. Regular inspection and maintenance of both front and rear braking components help ensure safety and longevity for any vehicle.
